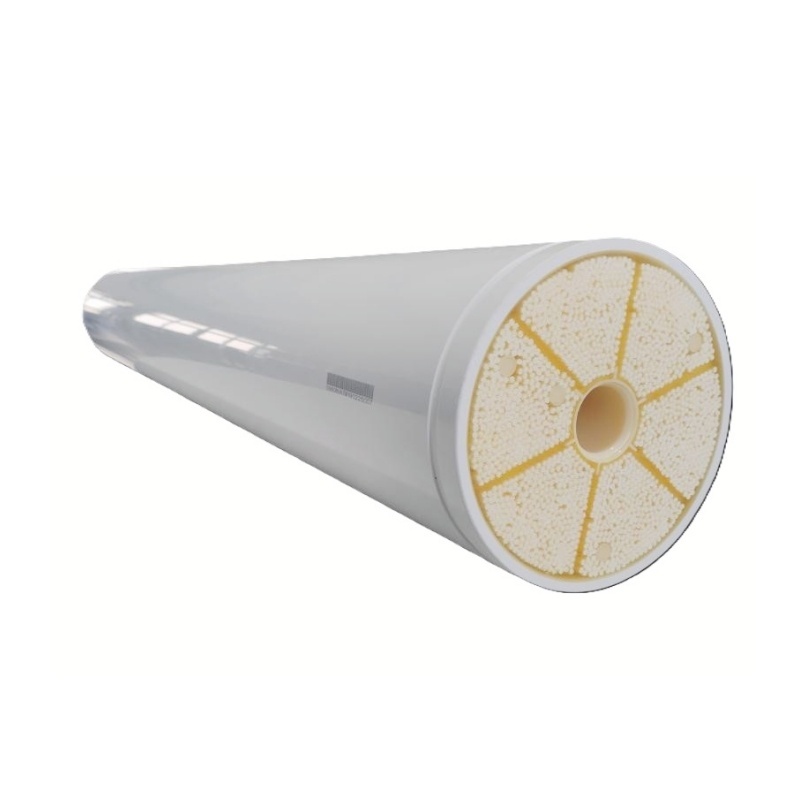

dizzer L 0.9 MB 40 PB Equivalent

Product No.：TF7B0.9D-40H
Online Inquiry

DuPont Inge dizzer L 0.9 MB 40 PB, dizzer L 0.9 MB40PB (VK-0108) equivalent, equivalence, replacement, alternative, analog, retrofit, analogue, derivative, substitution UF membrane module: TF7B0.9D-40H

Equivalent Comparison Chart

Parameters	Module	Equivalent Module
Model	DuPont dizzer L 0.9 MB 40 PB	TF7B0.9D-40H
Dimensions	D 200 mm, L 1527.5 mm	D 200 mm, L 1527.5 mm
Membrane Material	PESM	PESM
Fiber Configuration	7-bore	7-bore
Pore Size	0.02 µm	0.02 µm
Membrane Area	40 m²	40 m²
Flow Direction	Inside-out	Inside-out
Type of operation	Dead-end flow or cross flow	Dead-end flow or cross flow

General Information

TF7B0.9D-40H is manufactured as the quivalent, replacement, alternative, retrofit and analogue to DuPont Inge dizzer L 0.9 MB 40 PB (VK-0108), which are used for production of process water and potable water. Major applications are the filtration of surface water, seawater and industrial wastewater. TF7B0.9D-40H ultrafiltration elements use Tanal’s SevBore fiber technology with an inside-out flow. SevBore fibers are naturally hydrophilic 7-bore PES hollow fibers by advanced modification technology, which makes TF7B0.9D-40H ultrafiltration membrane modules the most robust PES (polyethersulfone) UF membrane on the market.

The mode of operation is either dead-end or cross-flow (though cross flow mode is only used in certain circumstances), backwash (with filtrate only) at regular intervals and chemically enhanced backwash are required for the continuous operation.

Features

The 3rd generation modified PES membrane fibers of 7 bores
A nominal pore size of 0.02 μm for optimal removal of particles, bacteria and viruses
Inside-out flow direction without air scouring
Typical filtrate quality SDI < 2.5, turbidity < 0.1 NTU

Advantages

Extremely high mechanical strength avoiding fiber breakage
High chemical tolerance
High-quality filtrate by reliable blocking of microorganisms and viruses
Minimum operating costs and efficient backwash
Economical equivalent element for direct replacement of DuPont Inge dizzer L 0.9 MB 40 PB (VK-0108) as plug-and-play

Applications

Surface water
Potable water
Seawater desalination
Pre-treatment of industrial water
Industrial wastewater

Module Dimensions

DuPont Inge dizzer L 0.9 MB 40 PB (VK-0108) Ultrafiltration Membrane Equivalent Dimension

Model

L (mm/inch)

(mm/inch)

Filtrate connection

d (mm/inch)

TF7B0.9D-40H

1527.5/60.14

200/7.9

42.6/1.68

Specifications

Model	TF7B0.9D-40H
Effective membrane area	40 m² (431 ft²)
Weight	19 kg (42 lb)
Fiber ID/OD	0.9/4.0 mm (0.04/0.16 inch)
Membrane material	Modified PES (polyethersulfone), 7 bores
Pore size	0.02 μm
Housing material	UPVC
Sealing material	EPDM
Potting material	Epoxy resin

Operating and Cleaning Limits

Flow direction	Inside-out
Direction of installation	Horizontal
Type of operation	Dead-end flow or cross flow
Temp. range	1-40℃ (34-104°F)
Max. feed pressure	0.4 MPa (58 psi)
Max. trans-membrane pressure	0.25 MPa (36 psi)
Max. backwash pressure	0.3 MPa (43.5 psi)
Max. backwash/forward flush	250 L/m²·h (150 gfd)
pH-continuous operation @ 25℃	2 - 11
pH-CIP @ 25℃	1 - 13
Hypochlorite (NaClO) for cleaning	50 to 200 ppm
Hydrogen peroxide for cleaning	100 to 200 ppm

Why choose Tanal for equivalent membranes?

High-Performance Membranes: engineered with advanced membrane technology for stable flux and long service life.

Guaranteed Quality Consistency: 100% integrity testing on every membrane module before delivery.

Cost Advantage & Fast Delivery: fully integrated supply chain in China ensures competitive pricing and short lead times.

Certified & Reliable Partner: operated under ISO 9001, ISO 14001 and ISO 45001 management systems.

As one of the leading manufacturers of 7-bore PES UF (ultrafiltration) membrane modules in China, Wuhan Tanal Industrial Co., Ltd. offers equivalent replacement UF membrane modules for major international brands. If you are looking for a DuPont Inge dizzer L 0.9 MB 40 PB (VK-0108) equivalent UF membrane module for your project or your customer, please send us an inquiry now.
