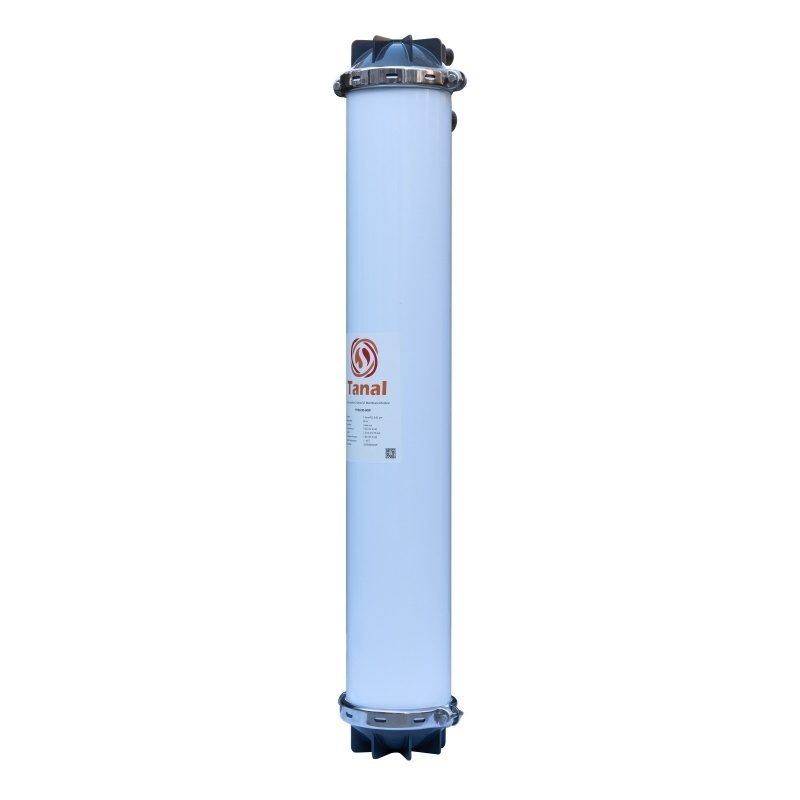

dizzer XL 0.9 MB 60W Equivalent

Product No.：TF7B0.9D-60W
Online Inquiry

Equivalent, equivalence, replacement, alternative, analog, retrofit, analogue, derivative, substitution to: DuPont Inge dizzer XL 0.9 MB 60W

Equivalent Comparison Chart

Parameters	Module	Equivalent Module
Model	DuPont Inge dizzer XL 0.9 MB 60W	TF7B0.9D-60W
Dimensions	D 250 mm, L 1680 mm	D 250 mm, L 1680 mm
Membrane Material	PESM	PESM
Fiber Configuration	7-bore	7-bore
Pore Size	0.02 µm	0.02 µm
Membrane Area	60 m2	60 m²
Flow Direction	Inside-out	Inside-out
Type of operation	Dead-end flow or cross flow	Dead-end flow or cross flow

General Information

TF7B0.9D-60W is manufactured as the direct equivalent, replacement, alternative, analog, retrofit and analogue to replace DuPont Inge dizzer XL 0.9 MB 60W UF membrane module.
TF7B0.9D-60W ultrafiltration membrane modules are developed and manufactured as equivalents, which are used for production of process water, potable water and wastewater. Major applications are the filtration of surface water, potable water, seawater and industrial wastewater. TaFlux SevBore DW series ultrafiltration modules use Tanal’s SevBore fiber technology with an inside-out flow direction. SevBore fibers are naturally hydrophilic 7-bore PES hollow fibers by advanced modification technology, which makes TaFlux SevBore DW series ultrafiltration membrane modules the most robust PES (polyethersulfone) UF membrane on the market.

The mode of operation is either dead-end or cross-flow (though cross flow mode is only used in certain circumstances), backwash (with filtrate only) at regular intervals and chemically enhanced backwash are required for the continuous operation.

Features

The 3rd generation modified PES membrane fibers of 7 bores
A nominal pore size of 0.02 μm for optimal removal of particles, bacteria and viruses
Inside-out flow direction without air scouring
Typical filtrate quality SDI < 2.5, turbidity < 0.1 NTU

Advantages

Extremely high mechanical strength with no fiber breakage
High chemical tolerance
High-quality filtrate by reliable blocking of microorganisms and viruses
Minimum operating costs and efficient backwash
Economical equivalent module for direct replacement to DuPont Inge dizzer XL 0.9 MB 60W as plug-and-play

Applications

Surface water
Potable water
Seawater desalination
Pre-treatment of industrial water
Industrial wastewater

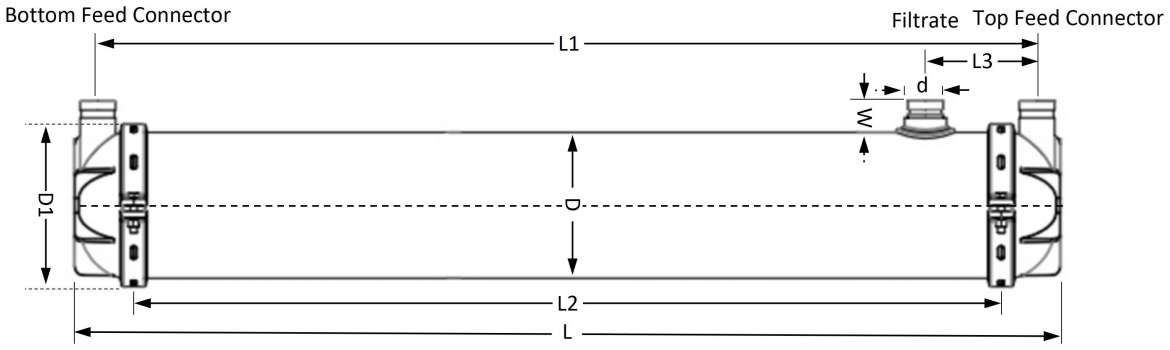

Module Dimensions

Model	Overall length L (mm/inch)	Length feed connectors L1 (mm/inch)	Length without end caps L2 (mm/inch)	Length top feed to filtrate connector L3 (mm/inch)	Diameter without end caps D (mm/inch)	End cap clamp diameter D1 (mm/inch)	Connector length W (mm/inch)	Feed, Filtrate connector (d)
TF7B0.9D-60W	1,680/66.14	1,600/62.99	1,485/58.46	190/7.48	250/10	295/11.61	40/1.57	DN50 (2” Victaulic)

Specifications

Model	TF7B0.9D-60W
Effective membrane area (m²/ ft²)	60/646
Weight (kg/lb)	51/112
Fiber ID/OD	0.9/4.0 mm (0.04/0.16 inch)
Membrane material	Modified PES (polyethersulfone), 7 bores
Pore size	0.02 μm
Housing material	UPVC
End cap material	UPVC
Potting material	Epoxy resin
Clamp material	Stainless Steel
Sealing material	EPDM

Operating and Cleaning Limits

Flow direction	Inside-out
Type of operation	Dead-end flow or cross flow
Temperature range	1-40℃ (34-104°F)
Max. rate of temperature change (per minute)	5℃ (9°F)
Max. feed pressure	0.5 MPa (72.5 psi)
Max. rate of pressure change (per second)	0.05 MPa (7.25 psi)
Typical trans-membrane pressure	0.01 MPa - 0.15 MPa (1.5 psi - 21.75 psi)
Max. trans-membrane pressure	0.25 MPa (36 psi)
Max. backwash pressure	0.3 MPa (43.5 psi)
Filtration flux	60-180 L/m²·h (35-105 gfd)
Max. backwash/forward flush	230-300 L/m²·h (135-175 gfd)
pH-continuous operation @ 25℃	2 - 11
pH-CIP @ 25℃	1 - 13
Hypochlorite (NaOCl) for cleaning	50 to 200 ppm
Hydrogen peroxide for cleaning	100 to 500 ppm

Why choose Tanal for equivalent membranes?

High-Performance Membranes: engineered with advanced membrane technology for stable flux and long service life.

Guaranteed Quality Consistency: 100% integrity testing on every membrane module before delivery.

Cost Advantage & Fast Delivery: fully integrated supply chain in China ensures competitive pricing and short lead times.

Certified & Reliable Partner: operated under ISO 9001, ISO 14001 and ISO 45001 management systems.

Tanal offers equivalent replacement UF membrane modules for various brands. If you and your customer accept DuPont Inge dizzer XL 0.9 MB 60W equivalent UF membrane module, please send us an inquiry now.
