Equivalent, equivalence, replacement, alternative, analog, retrofit, analogue, derivative, substitution to: Veolia Suez ZW700B-RMS UF membrane module

Equivalent Comparison Chart

General Information

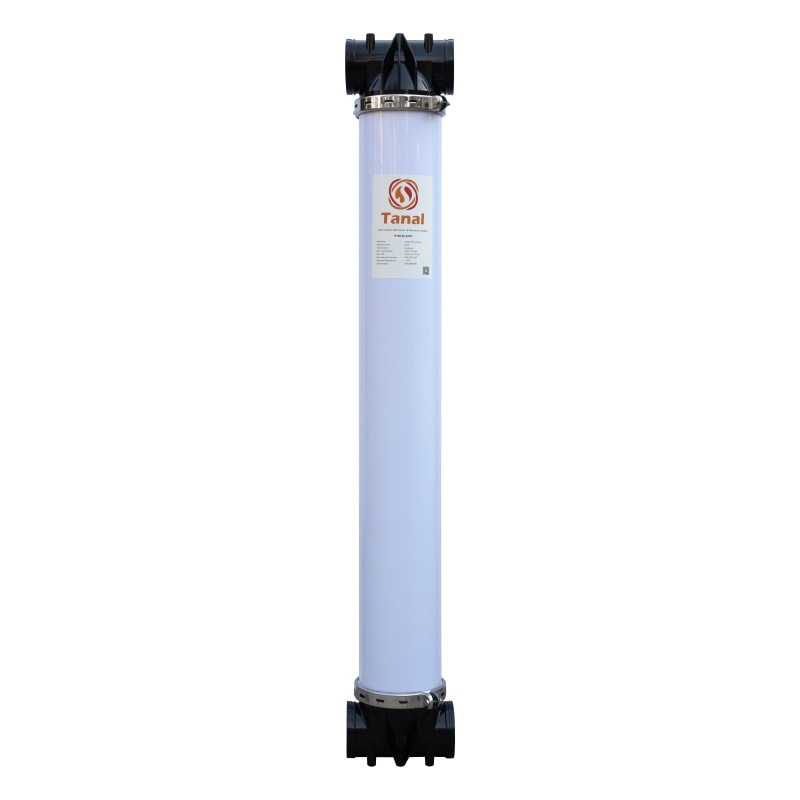

TF7B0.9D-85WT is manufactured as the equivalent, replacement, alternative, retrofit and analogue to Veolia Suez ZW700B-RMS UF membrane module.
TF7B0.9D-85WT ultrafiltration membrane modules are used for production of process water, potable water and wastewater. Major applications are the filtration of surface water, potable water, seawater and industrial wastewater. TF7B0.9D-85WT series ultrafiltration modules use Tanal’s SevBore fiber technology with an inside-out flow direction. SevBore fibers are naturally hydrophilic 7-bore PES hollow fibers by advanced modification technology, which makes TF7B0.9D-85WT ultrafiltration membrane modules the most robust PES (polyethersulfone) UF membrane on the market.
The mode of operation is either dead-end or cross-flow (though cross flow mode is only used in certain circumstances), backwash (with filtrate only) at regular intervals and chemically enhanced backwash are required for the continuous operation.

Features

• A nominal pore size of 0.02 μm for optimal removal of particles, bacteria, and viruses
• Inside-out flow direction without air scouring
• PES membrane fibers of 7 bores
• Independent module for flexible coupling
• Typical filtrate quality SDI < 2.5, turbidity < 0.1 NTU

Advantages

• Extremely high mechanical strength with no fiber breakage
• High chemical tolerance
• High-quality filtrate by reliable blocking of microorganisms and viruses
• Flexibility for system design with less assembly work
• Economical equivalent module for direct replacement for Veolia Suez ZW700B-RMS to fit in existing bottom frames and skids

Applications

• Surface water
• Potable water
• Seawater desalination
• Pre-treatment of industrial water
• Industrial wastewater

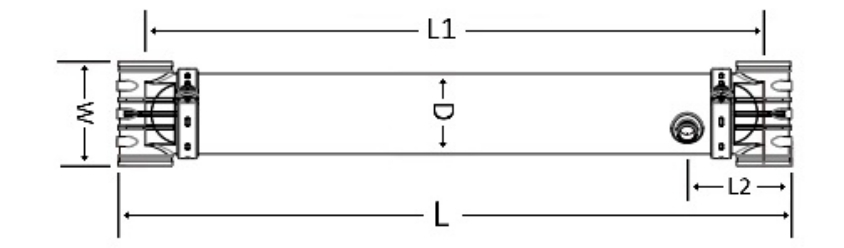

Module Dimensions

Model	Overall length L (mm/inch)	Center distance of Feed ports L1 (mm/inch)	Filtrate port to Top L2 (mm/inch)	Diameter without end caps D (mm/inch)	Width of the T-piece W (mm/inch)
TF7B0.9D-85WT	2,327/91.61	2,152/84.72	330/12.99	250/10	325/12.80

Specifications

Model	TF7B0.9D-85WT
Effective membrane area (m²/ ft²)	85/915
Weight (kg/lb)	60/132
Fiber ID/OD	0.9/4.0 mm (0.04/0.16 inch)
Membrane material	Modified PES (polyethersulphone), 7 bores
Pore size	0.02 μm
Housing material	UPVC
End cap material	UPVC
Potting material	Epoxy resin
Clamp material	Stainless Steel
Sealing material	EPDM
Connector length	40 mm (1.57 inch)
Diameter of Filtrate port (d1)	2” (DN50)
Diameter of Feed ports (d2)	6” (DN150)

Operating and Cleaning Limits

Type of operation	Dead-end flow or cross flow
Flow direction	Inside-out
Temperature range	1-40℃ (34-104°F)
Max. rate of temperature change (per minute)	5℃ (9°F)
Max. feed pressure	0.5 MPa (72.5 psi)
Max. rate of pressure change (per second)	0.05 MPa (7.25 psi)
Max. trans-membrane pressure	0.15 MPa (21.75 psi)
Max. backwash pressure	0.3 MPa (43.5 psi)
Filtration flux	60-180 L/m2·h (35-105 gfd)
Max. backwash/forward flush	230-300 L/m2·h (135-175 gfd)
pH-continuous operation @ 25℃	2 - 11
pH-CIP @ 25℃	1 - 13
Hypochlorite (NaOCl) for cleaning	50 to 200 ppm
Hydrogen peroxide for cleaning	100 to 500 ppm

Part List for Module

Parts	Specifications	Unit	Quantity
Membrane module	D 250 mm, L 2327 mm	piece	1
Coupling set for feed ports	6"	piece	2
Coupling set for filtrate port	2”	piece	1
Transparent filtrate pipe	D 2”, L 464 mm	piece	1
90° elbow piece PP	2”	piece	2

Specifications of T-Skid

Module	Overall Height H (mm)	Length L (mm)	Width W (mm/inch)		Feed/Drain, Filtrate Header (mm)
			2 rows	4 rows
TF7B0.9D-85WT	2,797 - 2,842	by modules	710	1,420	168.3 (DN150)

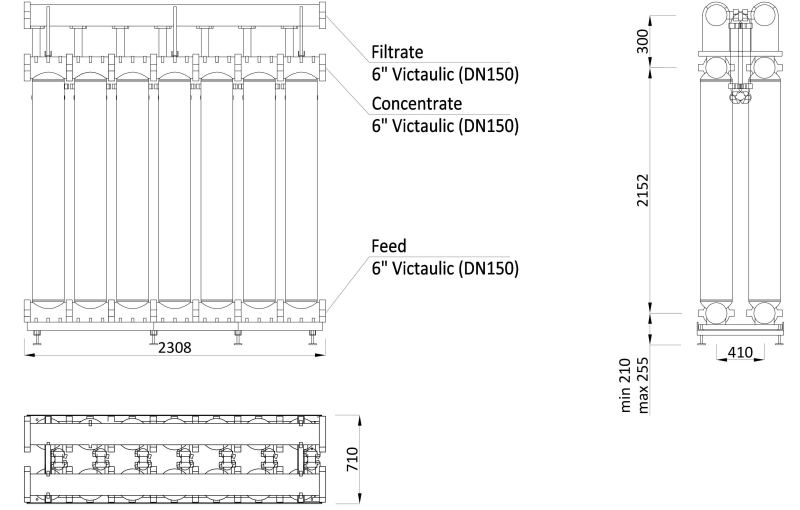

Example of Veolia Suez ZW700B-RMS Equivalent T-Skid TF7B0.9D-85WT-14-2 (skids can be customized):

Part List for Each T-Skid

Parts	Unit	Quantity
Bottom frame	set	multiple
Bottom connecting brace	piece	multiple
Top cross brace	set	multiple
Filtrate header	piece	multiple
Blind cap (6”)	piece	multiple

Tanal offers equivalent replacement UF membrane modules for various brands. If you and your customer accept Veolia Suez ZW700B-RMS equivalent UF membrane module, please send us an inquiry now.
