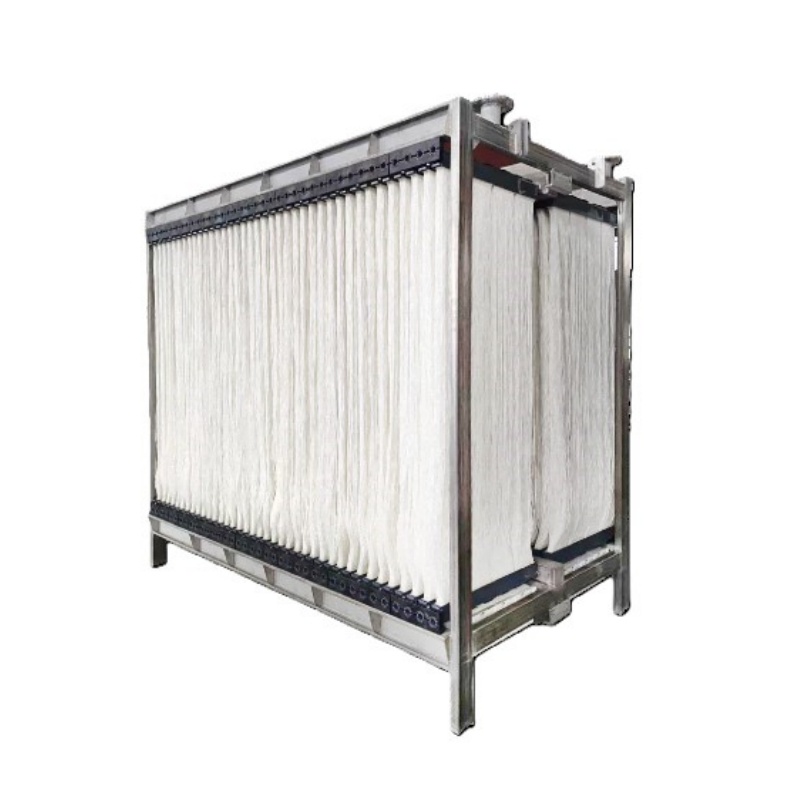

ZeeWeed 500EV R-56M Cassette Equivalent

Product No.：TFZWS41Q56DLP
Online Inquiry

Equivalent, equivalence, replacement, alternative, alternate, analog, retrofit, analogue, derivative, substitution: Veolia Suez ZeeWeed 500EV R-56M Cassette, ZW500EV R-56M Cassette

General Information

TaFlux ZW Pulse series MBR cassettes TFZWS41Q56DLP consist of TaFlux ZW Select series hollow fiber MBR membrane modules, which are designed and manufactured mainly for wastewater and sewage treatment plants. The new generation TaFlux ZW Pulse MBR cassette for MBR applications are upgrade-designed and improved, while continuing to leverage the aeration and header design.

TFZWS41Q56DLP cassettes use improved state-of-art pulse aerators to save over 40% energy in aeration, meanwhile keep MBR modules from fouling, providing economical, comprehensive wastewater and sewage solutions to industrial and municipal applications around the globe.

Cassette Characteristics

High quality raw material
High resistance to fouling
Compact design with high membrane packing density

Advantages

High-quality filtrate
Small footprint to reduce CAPEX
Pulsed aeration to reduce OPEX
Economical equivalent cassette for direct replacement of Veolia Suez ZeeWeed 500EV R-56M Cassette

Applications

Industrial wastewater
Municipal sewage
Domestic sewage
Submerged filtration
Pretreatment of industrial water

Figure

Veolia Suez ZeeWeed 500EV R-56M LEAPmbr Cassette Equivalent Dimensions

Dimensions

Module	Type	L (mm/inch)	W (mm/inch)	H (mm/inch)
TFZWS41Q	56D	2,468/97.17	1,750/68.9	2,830/111.42

Specifications

Type	56D
Filtrate Connection	1 x 6” vert. pipe
Air Connection	1 x 3” FNPT half coupling
Max. Shipping Weight (kg/lb)	1,892 (4,172)
Max. Weight (kg/lb)	4,250 (9,370)

Operating and Cleaning Limits

Flow Type	Negative Suction Pressure
Backwash Type	Air Water Backwash
Max TMP	-0.055 MPa/-8 psi
Operating Temperature	5 - 45℃/41 - 113°F
Recommended pH Range	1 - 12 (≤ 40℃)
Max. Active Chlorine (ppm)	1,000
Sodium Hypochlorite Cleaning	Typical 500-1,500 ppm, at ≤ 40℃ Max. 5,000 ppm 2,880,000 ppm hours cumulative
Hydrochloric Acid Cleaning	Typical 2,000 ppm, at ≤ 40℃ Max. 3% 1,440,000 ppm hours cumulative
Citric Acid Cleaning	Typical 0.5%, at ≤ 40℃ Max. 15,000 ppm 1,440,000 ppm hours cumulative
