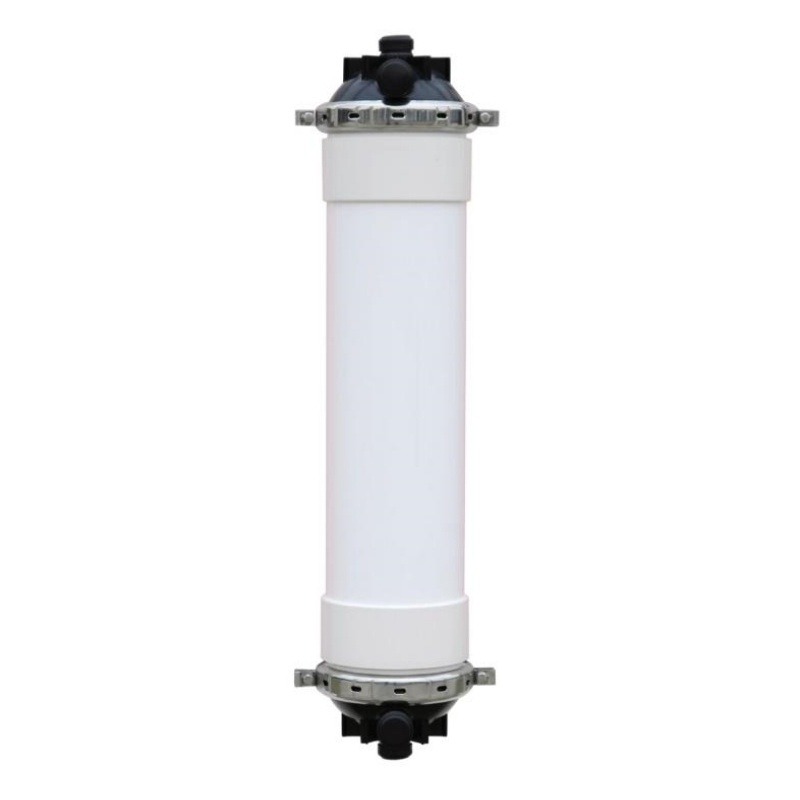

Memstar UF-1010E Equivalent

Product No.：TFQF55
Online Inquiry

Equivalent, equivalence, replacement, alternative, alternate, analog, retrofit, analogue, derivative, substitution: Memstar UF-1010E Pressurized UF, UF1010E

General Information

TFQF55 is manufactured as the equivalent, direct replacement, alternative, analog, retrofit and analogue to replace Memstar UF-1010E (UF1010E) Pressurized UF membrane module.

TaFlux QF series TFQF55 UF (ultrafiltration) membrane modules are pressurized modules, which are developed and manufactured for the filtration of surface water, potable water, seawater and industrial wastewater. These UF modules are made of new generation PVDF hollow fiber membrane with high fouling resistance and hydrophilicity.

TFQF55 UF modules are applied in flexible UF systems, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes such as NF and RO.

Features

Outside-to-inside flow path
New generation PVDF hollow fiber
Nominal pore size of 0.04 μm
Typical filtrate turbidity ≤ 0.1 NTU
Bacteria removal ≥ 4 log

Advantages

High tolerance for feed water
High-quality filtrate
Less energy needed by high flux
Longer service life by high fouling resistance and mechanical strength
Economical equivalent module for direct replacement of Memstar UF-1010E (UF1010E)

Applications

Surface water
Potable water
Industrial Process water
Reclaimed water reuse
Industrial wastewater
Pre-treatment of seawater desalination

Module Dimensions

Memstar UF-1010E Equivalent Pressurized UF Membrane Dimension

Model	L (mm/in)	L1 (mm/in)	L2 (mm/in)	L3 (mm/in)	D (mm/in)	W (mm/in)	Connection port	Air inlet
TFQF55	1,195/47.0	1,073/42.2	79/3.1	45/1.8	250/9.8	172/6.8	DN50 (2” Victaulic)	Ø25/19 mm

Specifications

Model	TFQF55
Effective membrane area (m²/ft²)	55/592
Filtrate flow rate m3/h (gpm)	2.2 - 6.6 (10 - 29)
Dry weight (KG/lbs)	41/90
Wet weight filled with water (KG/lbs)	73/161
Membrane material	PVDF (Polyvinylidene Fluoride)
Fiber ID/OD	0.6/1.2 mm (0.024/0.047 inch)
Pore size	0.04 μm
Housing material	UPVC
Potting material	Epoxy resin

Operating and Cleaning Limits

Flow direction	Outside-in
Type of operation	Dead-end flow or cross flow
Typical flux (25°C)	40 - 120 L/m²·h (25 - 71 gfd)
Temperature	1 - 40°C (41 - 104°F)
Maximum feed pressure	0.3 MPa (44 psi)
Maximum trans-membrane pressure	0.2 MPa (30 psi)
Backwash flux (25°C)	75 - 120 L/m²·h (48 - 71 gfd)
Maximum backwash pressure	0.25 MPa (36 psi)
Maximum air scour feed pressure	0.25 MPa (36 psi)
Air scour flow	15 Nm³/h (9 cfm)
Air scour duration	1 - 4 minutes
Air scour frequency	Once every 20 - 60 minutes
pH-Continuous operation @25°C	2 - 11
pH-Cleaning @25°C	1 - 13
Maintenance cleaning frequency	1 - 3 times per day
Maintenance cleaning duration	20 - 30 minutes
Disinfection chemicals	NaClO, ClO₂ or NH₂Cl
Cleaning chemicals	NaOH, HCl, H₂SO₄ or citric acid
Instantaneous chlorine tolerance	5,000 ppm
Maximum chlorine exposure	750,000 ppm-hrs
Maximum feed TSS	100 ppm
Maximum feed turbidity	300 NTU
Maximum feed particle size	≤ 500 µm, ≤ 120 µm for seawater feeds
Oil content in feed water	< 2 ppm
Filtrate SDI₁₅	≤ 2.5
Filtrate turbidity	≤ 0.1 NTU

We offer various UF membrane module replacements. If you and your customer accept Memstar UF-1010E (UF1010E) Equivalent Pressurized UF membrane module, please send us an inquiry now.
