ROMICON HF VINEGAR 5043-52-75-PM500 (0720157) Equivalent

Product No.：TFXP-500-20-1100
Online Inquiry

Equivalent, equivalence, replacement, alternative, alternate, analog, retrofit, analogue, derivative, substitution: Koch Kovalus ROMICON HF VINEGAR 5043-52-75-PM500, 0720157 HF

General Information

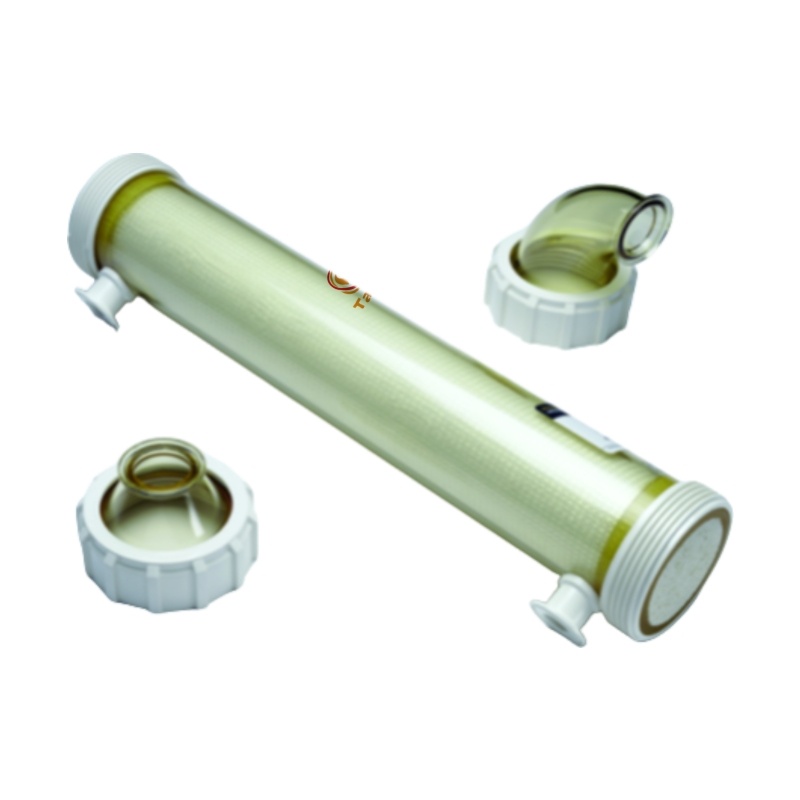

TFXP-500-20-1100 is manufactured as the direct equivalent, replacement, alternative, retrofit and analogue to Koch Kovalus ROMICON 0720157 HF VINEGAR 5043-52-75-PM500 hollow fiber cartridge.
TFXP-500-20-1100 ultrafiltration membrane modules are developed and manufactured for separation, purification and concentration purposes in industrial and lab processes.
TaFlux Bio P series TFXP-500-20-1100 ultrafiltration modules use naturally hydrophilic PES hollow fiber ultrafiltration membrane with excellent performance, which makes TaFlux Bio series modules the most robust PES (polyethersulfone) UF membrane on the market.

Features

Wide range of hollow fiber membrane inner diameter options
Linearly scalable from R&D scale to production scale
Good hydrophilicity, high flux, high separation accuracy, high processing efficiency
Low bioburden and low protein binding rate
Wide range of pore size selection from 3 kD to 750 kD
Material does not contain animal-derived ingredients
100% integrity test
Membrane shell materials meet USP Class VI requirements
Manufactured in clean rooms

Advantages

Excellent biosafety
High cleanliness for critical applications
Applicable for online steam sterilization
Lower operation costs by long service life
Economical equivalent module for direct replacement of Koch Kovalus ROMICON 0720157 HF VINEGAR 5043-52-75-PM500

Applications

Monoclonal antibody clarification/concentration
Plasmid concentration/diafiltration
Protein concentration/purification/diafiltration
Nucleic acid concentration/diafiltration
Suspended solids removal
Vaccine concentration/purification
Virus concentration/purification/removal
Bacterial concentration/diafiltration
Pyrogen removal
Plasma purification/concentration
Buffer depyrogenation
Cell harvesting/concentration/clarification/purification
Colloid suspension concentration/diafiltration
Buffer continuous replacement
Cell culture continuous perfusion
Cell culture and clarification
Liposome purification
Lysate clarification
Mammalian cell clarification

Module Dimensions

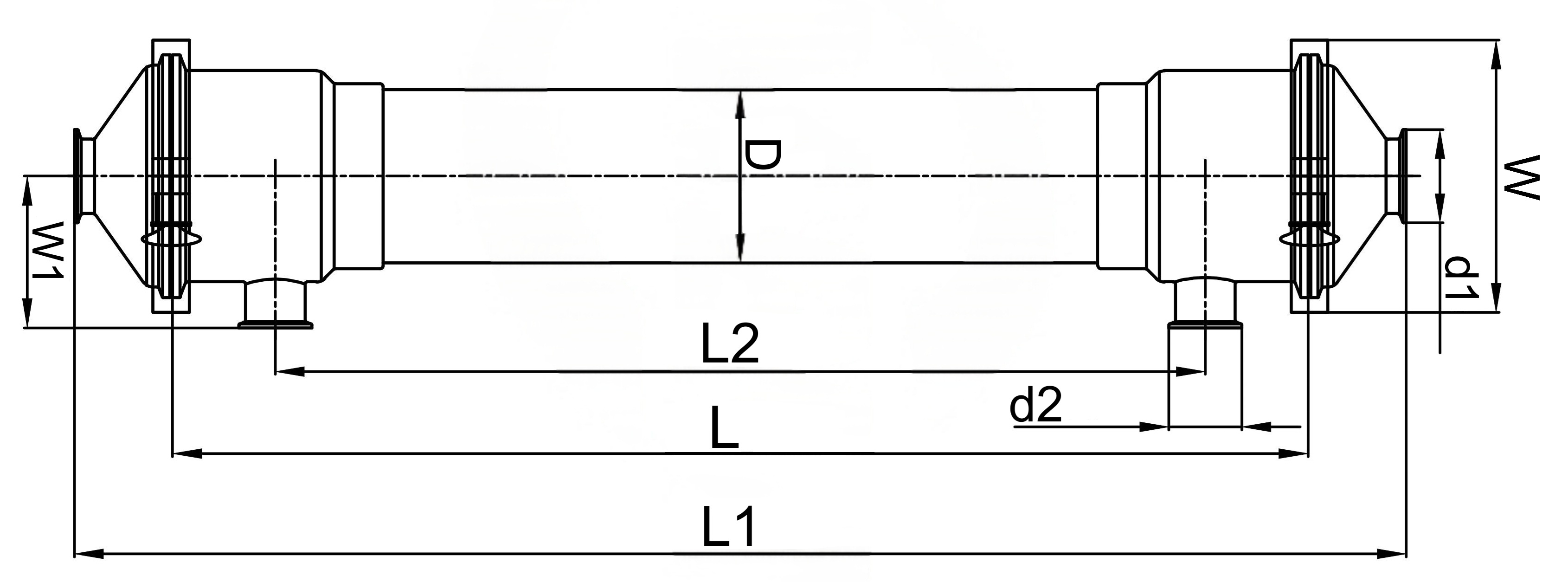

Koch Kovalus ROMICON HF VINEGAR 5043-52-75-PM500 Equivalent UF Cartridge Dimension

Model	Cartridge Length L (mm/inch)	Overall Length L1 (mm/inch)	Filtrate Distance L2 (mm/inch)	Diameter D (mm/inch)	Connection W (mm/inch)	Axis to Filtrate W1 (mm/in)	Feed Port d1 (mm/in)	Filtrate Port d2 (mm/in)
TFXP-500-20-1100	1,100/43.31	1,235/48.62	824/32.44	119/4.69	187/7.36	104/4.09	64/2.52	50/1.94

Specifications

Model	TFXP-500-20-1100
MWCO	500,000 Dalton
Fiber Inner Diameter	2.0 mm/0.078 inch
Effective Membrane Area	3.9 m²/42 ft²
Membrane material	PES (polyethersulfone)
Housing Material	Polysulfone
Potting Material	Proprietary Epoxy Compound
Storage Solution	Glycerin

Operating and Cleaning Limits

Flow Direction	Inside-out
Temperature Range (at pH 6)	1-60℃ (33.8-140°F)
Max. Feed Pressure	2.8 bar (40 psi)
Max. Trans-Membrane Pressure	2.4 bar (35 psi)
Max. Differential Pressure Feed Side	2.1 bar (30 psi)
Max. Permeate Side Back Pressure	1.4 bar (20 psi)
Max. Cleaning Temperature	60℃ (140°F)
pH-Continuous Operation	1.5 - 13 @ 54°C (130°F)
Max. Total Chlorine (During Cleaning)	200 ppm @ pH 10-10.5, 54°C (130°F) 0 ppm @ pH less than 9.5

We offer various PES UF membrane module equivalents. If you and your customer accept Koch Kovalus ROMICON 0720157 HF VINEGAR 5043-52-75-PM500 equivalent hollow fiber cartridge, please send us an inquiry now.
