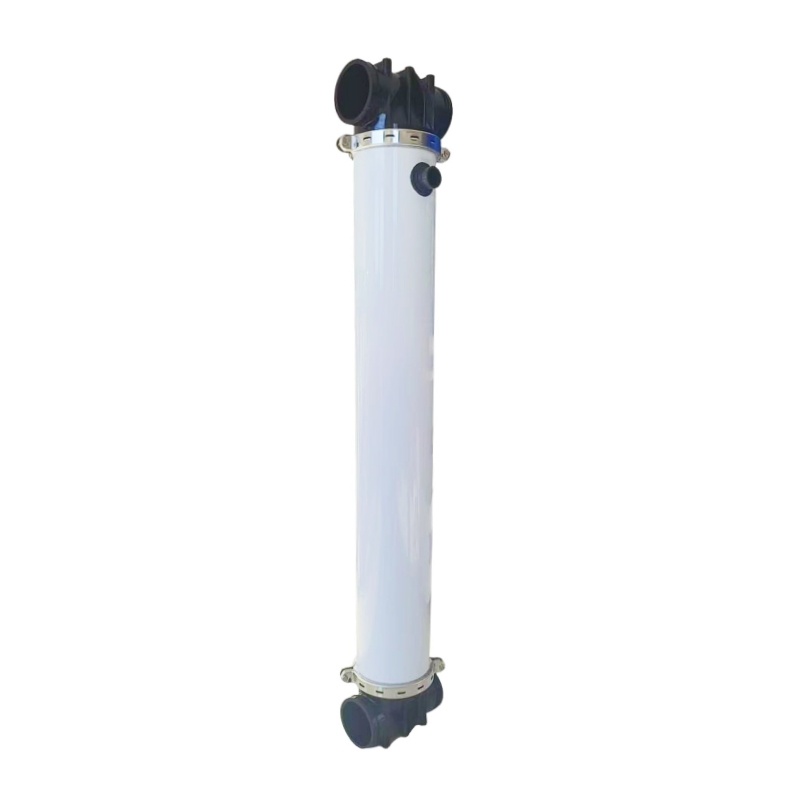

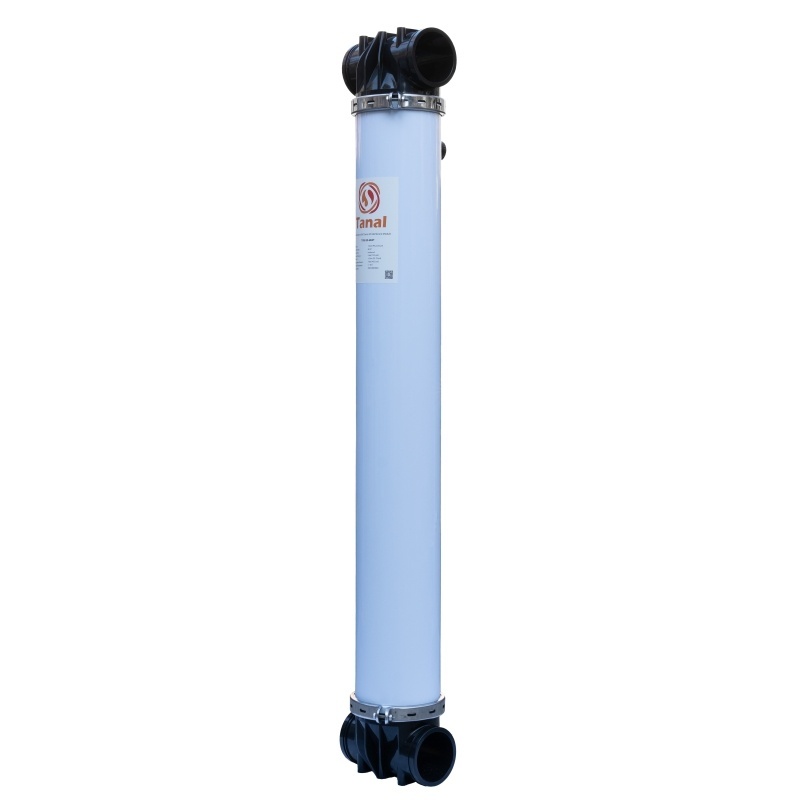

IntegraTec MB 60 TR S Equivalent

Product No.：TF7B0.9D-60WT
Online Inquiry

Equivalent, replacement, alternative, analog, retrofit, analogue: DuPont IntegraTec MB 60 TR S, 12071528

General Information

TF7B0.9D-60WT is manufactured as the direct equivalent, replacement, alternative, analog, retrofit and analogue to replace DuPont IntegraTec MB 60 TR S (12071528) ultrafiltration membrane module.
TF7B0.9D-60WT ultrafiltration membrane modules are integrated modules, developed and manufactured as equivalents for rackless systems, which are used for production of process water, potable water and wastewater. Major applications are the filtration of surface water, potable water, seawater and industrial wastewater. TaFlux SevBore DWT series TF7B0.9D-60WT ultrafiltration modules use Tanal’s SevBore fiber technology with an inside-out flow direction. SevBore fibers are naturally hydrophilic 7-bore PES hollow fibers by advanced modification technology, which makes TaFlux SevBore DWT series ultrafiltration membrane modules the most robust PES (polyethersulfone) UF membrane on the market.

The mode of operation is either dead-end or cross-flow (though cross flow mode is only used in certain circumstances), backwash (with filtrate only) at regular intervals and chemically enhanced backwash are required for the continuous operation.

Features

A nominal pore size of 0.02 μm for optimal removal of particles, bacteria, and viruses
Inside-out flow direction without air scouring
PES membrane fibers of 7 bores
Independent module for flexible coupling
Typical filtrate quality SDI < 2.5, turbidity < 0.1 NTU

Advantages

Extremely high mechanical strength with no fiber breakage
High chemical tolerance
High-quality filtrate by reliable blocking of microorganisms and viruses
Flexibility for system design with less assembly work
Economical equivalent module for direct replacement of DuPont IntegraTec MB 60 TR S (12071528) to fit in existing bottom drames and skids

Applications

Surface water
Potable water
Seawater desalination
Pre-treatment of industrial water
Industrial wastewater

Module Dimensions

DuPont IntegraTec MB 60 TR S (12071528) Equivalent Ultrafiltration Module Dimension

Model	Overall length L (mm/inch)	Center distance of Feed ports L1 (mm/inch)	Filtrate port to Top L2 (mm/inch)	Diameter without end caps D (mm/inch)	Width of the T-piece W (mm/inch)
TF7B0.9D-60WT	1,879/73.98	1,703/67.05	325/12.80	250/10	325/12.80

Specifications

Model	TF7B0.9D-60WT
Effective membrane area (m²/ ft²)	60/646
Weight (KG/lbs.)	47/103
Fiber ID/OD	0.9/4 mm (0.04/0.16 inch)
Membrane material	Modified PES (polyether sulfone), 7 bores
Pore size	0.02 μm
Housing material	UPVC
End cap material	UPVC
Sealing material	EPDM
Potting material	Epoxy resin
Connector length	40 mm (1.57 inch)
Diameter of Filtrate port (d1)	2" (DN50)
Diameter of Feed ports (d2)	6" (DN150)

Operating and Cleaning Limits

Type of operation	Dead-end flow or cross flow
Flow direction	Inside-out
Temperature range	1-40℃ (34-104°F)
Max. rate of temperature change (per minute)	5℃ (9°F)
Max. feed pressure	5 bar (72.5 psi)
Max. rate of pressure change (per second)	0.5 bar (7.25 psi)
Max. trans-membrane pressure	1.5 bar (21.75 psi)
Max. backwash pressure	3 bar (43.5 psi)
Filtration flux	60-180 l/m²h (35-105 gfd)
Backwash/forward flush maximum	230-300 l/m²h (135-175 gfd)
pH-continuous operation @ 25℃	2-11
pH-CIP @ 25℃	1-13
Hypochlorite (NaOCl) for cleaning	50 to 200 ppm
Hydrogen peroxide for cleaning	100 to 500 ppm

We offer various UF membrane module equivalents. If you and your customer accept DuPont IntegraTec MB 60 TR S (12071528) equivalent UF membrane module, please send us an inquiry now.
