General Information

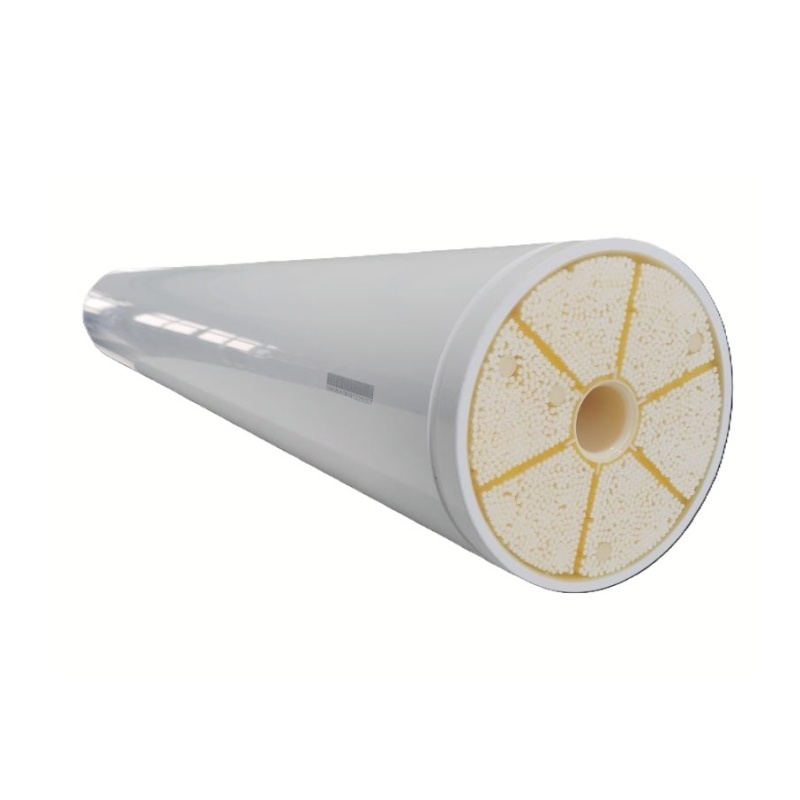

TF7B0.8ZW-55V is manufactured as the quivalent, replacement, alternative, retrofit and analogue to DuPont IntegraTec MB 55 (IN-2111), which are used for production of process water, potable water and wastewater. Major applications are the filtration of surface water, potable water and industrial wastewater. TF7B0.8ZW-55V ultrafiltration modules use Tanal’s SevBore fiber technology with an inside-out flow path. SevBore fibers are naturally hydrophilic 7-bore PES hollow fibers by advanced modification technology, which makes TF7B0.8ZW-55V ultrafiltration membrane modules the most robust PES (polyether sulfone) UF membrane on the market.

The mode of operation is either dead-end or cross-flow (though cross flow mode is only used in certain circumstances), backwash (with filtrate only) at regular intervals and chemically enhanced backwash are required for the continuous operation.

Features

Advantages

Applications

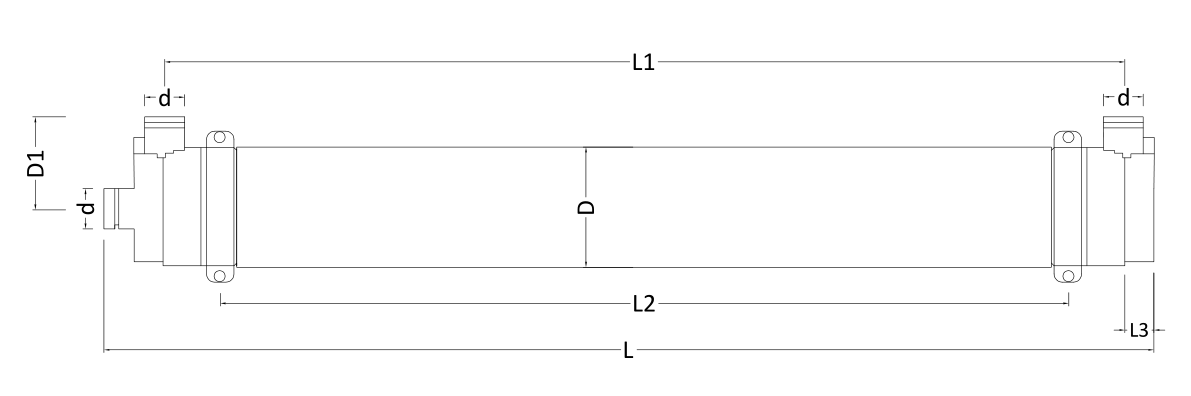

Module Dimensions

Model	L (mm/inch)	L1 (mm/inch)	L2 (mm/inch)	L3 (mm/inch)	D (mm/inch)	D1 (mm/inch)	Feed, Filtrate, Concentrate connection d (mm/inch)
TF7B0.8ZW-55V	1903/74.92	1738/68.43	1537/60.51	55.5/2.18	220/8.6	165/6.5	73.2/2.88

Specifications

Operating and Cleaning Limits
