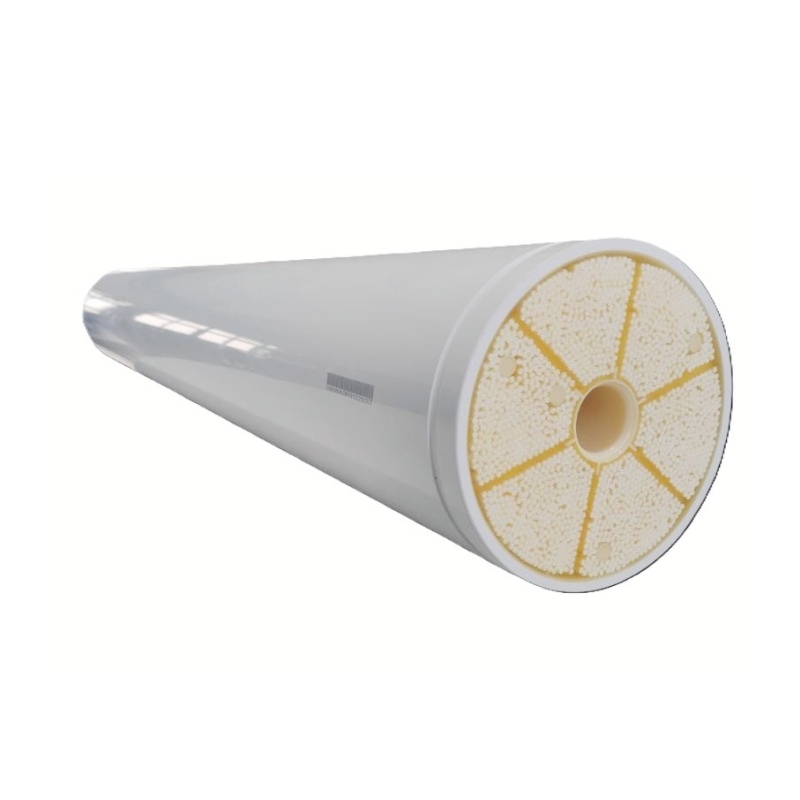

ZW700B-8060/UF10/7B/X/0.8/40 Equivalent

Product No.：TF7B0.8ZW-40
Online Inquiry

Equivalent, equivalence, replacement, alternative, alternate, analog, retrofit, analogue, derivative, substitution: Veolia Suez GE ZeeWeed 700B SevenBore ZW700B-8060/UF10/7B/X/0.8/40, ZW700B8060/UF10/7B/X/0.8/40

General Information

TF7B0.8ZW-40 is manufactured as the quivalent, replacement, alternative, retrofit and analogue to Veolia Suez GE ZeeWeed 700B SevenBore ZW700B-8060/UF10/7B/X/0.8/40, which are used for production of process water, potable water and wastewater. Major applications are the filtration of surface water, potable water and industrial wastewater. TF7B0.8ZW-40 ultrafiltration elements use Tanal’s SevBore fiber technology with an inside-out flow. SevBore fibers are naturally hydrophilic 7-bore PES hollow fibers by advanced modification technology, which makes TF7B0.8ZW-40 ultrafiltration membrane modules the most robust PES (polyethersulfone) UF membrane on the market.

The mode of operation is either dead-end or cross-flow (though cross flow mode is only used in certain circumstances), backwash (with filtrate only) at regular intervals and chemically enhanced backwash are required for the continuous operation.

Features

A nominal pore size of 0.02 μm for optimal removal of particles, bacteria and viruses
Inside-out flow direction without air scouring
PES membrane fibers of 7 bores
Typical filtrate quality SDI < 2.5, turbidity < 0.1 NTU

Advantages

Extremely high mechanical strength avoiding fiber breakage
High chemical tolerance
High-quality filtrate by reliable blocking of microorganisms and viruses
Minimum operating costs and efficient backwash
Economical equivalent module for direct replacement of Veolia Suez GE ZeeWeed ZW700B-8060/UF10/7B/X/0.8/40 by plug-and-play

Applications

Surface water
Potable water
Seawater desalination
Pre-treatment of industrial water
Industrial wastewater

Module Dimensions

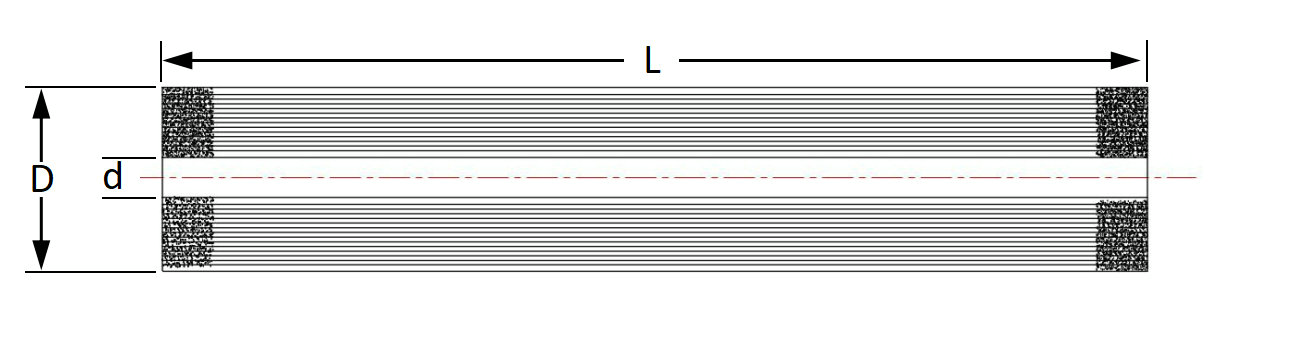

Veolia Suez ZW700B-8060/UF10/7B/X/0.8/40 Ultrafiltration Membrane Equivalent Dimension

Model	L (mm/inch)	D (mm/inch)	Filtrate connection d (mm/inch)
TF7B0.8ZW-40	1527.5/60.14	220/7.9	42.6/1.68

Specifications

Model	TF7B0.8ZW-40
Effective membrane area	40 m² (431 ft²)
Weight	19 KG (42 lbs)
Fiber ID/OD	0.8/3.6 mm (0.03/0.14 inch)
Membrane material	Modified PES (polyethersulfone), 7 bores
Pore size	0.02 μm
Housing material	UPVC
Sealing material	EPDM
Potting material	Epoxy resin

Operating and Cleaning Limits

Direction of installation	Horizontal
Type of operation	Dead-end flow or cross flow
Flow direction	Inside-out
Temp. range	1-40℃ (34-104°F)
Max. feed pressure	4 bar (58 psi)
Max. trans-membrane pressure	2.5 bar (36 psi)
Max. backwash pressure	3 bar (43.5 psi)
Backwash/forward flush maximum	250 l/m²h (150 gfd)
pH-continuous operation @ 25℃	2-11
pH-CIP @ 25℃	1-13
Hypochlorite (NaClO) for cleaning	50 to 200 ppm
Hydrogen peroxide for cleaning	100 to 200 ppm

As one of the leading manufacturers of 7-bore PES UF membrane modules in China, Wuhan Tanal Industrial Co., Ltd. offers equivalent replacement UF membrane modules for various brands. If you or your customer are looking for a Veolia Suez GE ZeeWeed 700B SevenBore ZW700B-8060/UF10/7B/X/0.8/40 without end-caps equivalent UF membrane module, please send us an inquiry now.
