WTR-620C Equivalent

Product No.：TFUNA-50A
Online Inquiry

Equivalent, equivalence, replacement, alternative, alternate, analog, retrofit, analogue, derivative, substitution: Pall Microza WTR-620C, WTR620C

General Information

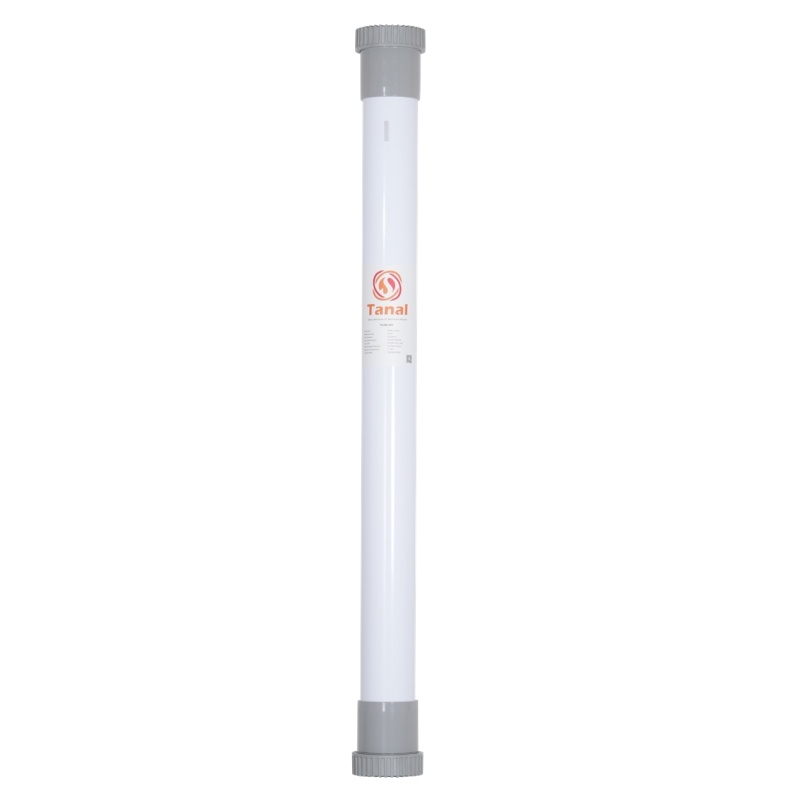

TFUNA-50A is manufactured as the equivalent, replacement, alternative, retrofit, analogue to Pall Microza WTR-620C (WTR620C) UF membrane module.

Pall Microza WTR-620C equivalent membrane modules TFUNA-50A are pressurized integrated modules, which are designed and manufactured for the filtration of surface water, potable water, seawater and industrial wastewater. These UF modules are made of upgraded new generation PVDF hollow fibers with extra permeability.

TFUNA-50A UF module is applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.

Features

Outside-to-inside flow direction
Upgraded new generation PVDF hollow fiber
Uniform pore size of 0.1 μm
Typical filtrate quality SDI ≤ 2.5, turbidity ≤ 0.1 NTU

Advantages

Upgraded design for easy installation
High-quality filtrate
Less energy needed by extra high permeability
Longer service life by high fouling resistance and mechanical strength
Economical equivalent module for direct replacement of Pall Microza WTR-620C

Applications

Surface water
Potable water
Beverage clarification
Reclaimed water reuse
Industrial wastewater
Pre-treatment of seawater desalination

Module Dimensions

Pall Microza WTR-620C equivalent ultrafiltration membrane module dimension

Model	L (mm/inch)^*	L1 (mm/inch)	D (mm/inch)	W (mm/inch)	Feed End Cap Material	Feed Connector	Filtrate Connector	Concentrate Connector
TFUNA-50A	2338/92.0	1990/78.3	165/6.5	215/8.5	SS 304	2.55 Ferrule	50A Expansion joint	JIS 40A Union

Specifications

Model	TFUNA-50A
Effective membrane area	50 m² (539 ft²)
Volume	53 L (14 gallon)
Dry weight	30 KG (66 lbs)
Wet weight filled with water	60 KG (132 lbs)
Membrane material	PVDF (Polyvinylidene Fluoride)
Fiber ID/OD	0.7/1.3 mm (0.02/0.05 inch)
Flow direction	Outside-in
Pore size	0.1 μm
Housing material	UPVC
Potting material	Polyurethane

* 0.03, 0.08, 0.1, 0.2 and 0.45 μm for wine, beer and other applications are available.

Operating and Cleaning Limits

Type of operation	Dead-end flow or cross flow
Design flux (25°C)	40 - 110 L/m²·h (24 - 65 gfd)
Temperature	1 - 40°C (34 - 104°F)
Maximum feed pressure (25°C)	4 bar (58 psi)
Maximum trans-membrane pressure	3 bar (43.5 psi)
Backwash flux (25°C)	80 - 120 L/m²·h (48 - 71 gfd)
Maximum backwash pressure	2.5 bar (36 psi)
Maximum air scour feed pressure	2.5 bar (36 psi)
Maximum air scour flow	4 - 12 Nm³/h (2.4 - 7.1 scfm)
pH-Continuous operation @25°C	1 - 10
Maximum NaClO	2,000 mg/L
Maximum feed TSS	100 ppm
Maximum feed turbidity	300 NTU
Maximum feed particle size	300 µm
Filtrate SDI₁₅	≤ 2.5
Filtrate turbidity	≤ 0.1 NTU

We offer various UF membrane module equivalents. If you and your customer accept Pall Microza WTR-620C equivalent UF membrane module, please send us an inquiry now.
