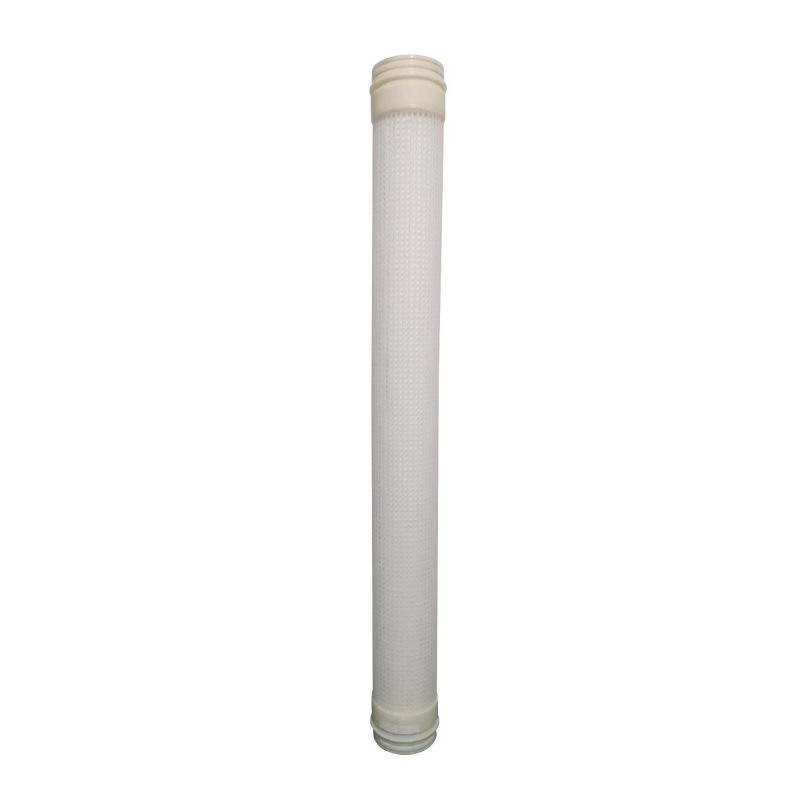

MEMCOR S10V Equivalent

Product No.：TFS10VP
Online Inquiry

Equivalent, replacement, alternative, analog, retrofit, analogue: DuPont MEMCOR LS10VP

General Information

TFS10VP is an equivalent, replacement, alternative, analog, retrofit and analogue to replace DuPont MEMCOR S10V UF membrane module.

TaFlux COR Pro series ultrafiltration (UF) membrane module TFS10VP is a pressurized integrated module, which is designed and manufactured for the filtration of surface water, potable water, seawater and industrial wastewater. These UF modules are made of upgraded new generation TIPS (thermally induced phase separation) PVDF hollow fibers with high tensile strength and extra permeability.

TFS10VP UF module is applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.

Features

Outside-to-inside flow direction
New generation TIPS PVDF hollow fiber
Uniform pore size of 0.04 μm
Typical filtrate quality SDI < 3, turbidity < 0.1 NTU

Advantages

Upgraded design for easy installation
High-quality filtrate
Less energy needed by extra high permeability
Longer service life by high mechanical strength and fouling resistance
Economical equivalent module for direct replacement of DuPont MEMCOR S10V

Applications

Surface water
Potable water
Beverage clarification
Reclaimed water reuse
Industrial wastewater
Pre-treatment of seawater desalination

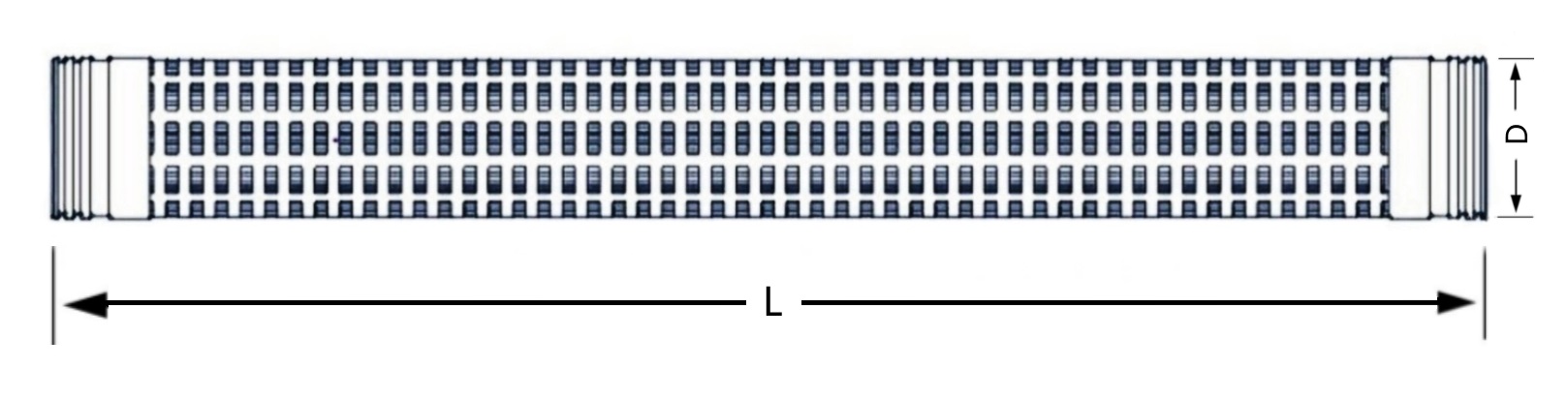

Module Dimensions

Model	Length (mm/inch)	Diameter (mm/inch)
TFS10VP	1,186/46.69	131/5.16

Specifications

Model	TFS10VP
Effective membrane area (m²/ft²)	27.9/300
Membrane material	PVDF (Polyvinylidene Fluoride), TIPS
Fiber ID/OD	0.6/1.1 mm (0.02/0.04 inch)
Flow direction	Outside-in
Pore size	0.04 μm
Outer net material	PE
Head material	ABS
Potting material	Epoxy resin / Polyurethane

Operating and Cleaning Limits

Type of operation	Dead-end flow or cross flow
Design flux (25°C)	40 - 110 L/m²·h (24 - 65 gfd)
Temperature	1 - 40°C (34 - 104°F)
Maximum feed pressure (25°C)	4 bar (60 psi)
Maximum trans-membrane pressure	3 bar (45 psi)
Operation trans-membrane pressure	0.2 - 1.5 bar (3 - 22 psi)
Backwash flux (25°C)	50 - 120 L/m²·h (30 - 70 gfd)
Maximum backwash pressure	2.5 bar (36 psi)
Maximum air scour feed pressure	2.5 bar (36 psi)
Maximum air scour flow	2 - 5 Nm³/h (1.12 - 3.1 scfm)
pH-Continuous operation @25°C	1 - 13
Maximum NaClO	5,000 mg/L
Maximum feed TSS	100 ppm
Maximum feed turbidity	300 NTU
Maximum feed particle size	300 µm
Filtrate SDI₁₅	≤ 3
Filtrate turbidity	≤ 0.1 NTU

We offer various PVDF UF membrane equivalents. If you and your customer accept DuPont MEMCOR S10V equivalent UF membrane, please send us an inquiry now.
