Equivalent, equivalence, replacement, alternative, alternate, analog, retrofit, analogue, derivative, substitution: Suez GE ZeeWeed 700B SevenBore ZW700B-10060/UF8/7B/V/0.9/60, ZW700B10060/UF8/7B/V/0.9/60 without end-caps

General Information

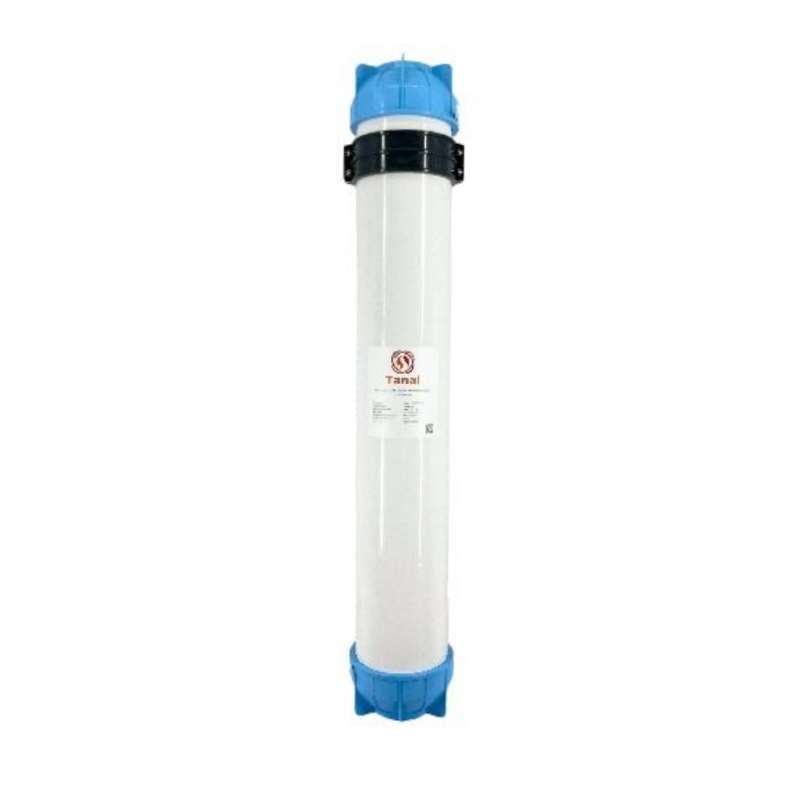

TF7B0.9ZW-60V is manufactured as the equivalent, replacement, alternative, retrofit and analogue to Suez GE ZeeWeed 700B SevenBore ZW700B-10060/UF8/7B/V/0.9/60 without end-caps, which are used for production of process water, potable water and wastewater. Major applications are the filtration of surface water, potable water, industrial wastewater and municipal sewage. TF7B0.9ZW-60V ultrafiltration modules use Tanal’s SevBore fiber technology with an inside-out flow direction. SevBore fibers are naturally hydrophilic 7-bore PES hollow fibers by advanced ultrafiltration technology, which makes TF7B0.9ZW-60V ultrafiltration membrane modules the most robust PES (polyether sulfone) UF membrane on the market.

The mode of operation is either dead-end or cross-flow (though cross flow mode is only used in certain circumstances), backwash (with filtrate only) at regular intervals and chemically enhanced backwash are required for the continuous operation.

Features

• A nominal pore size of 0.02 μm for optimal removal of particles, bacteria and viruses
• Inside-out flow direction without air scouring
• PES membrane fibers of 7 bores
• Typical filtrate quality SDI < 3, turbidity < 0.1 NTU

Advantages

• Extremely high mechanical strength with no fiber breakage
• High chemical tolerance
• High-quality filtrate by reliable blocking of microorganisms and viruses
• Minimum operating costs and efficient backwash
• Economical equivalent module for direct replacement of Suez GE ZeeWeed 700B ZW700B-10060/UF8/7B/V/0.9/60 without end-caps for plug-and-play

Applications

• Surface water
• Potable water
• Sea water desalination
• Pre-treatment of industrial water
• Industrial wastewater

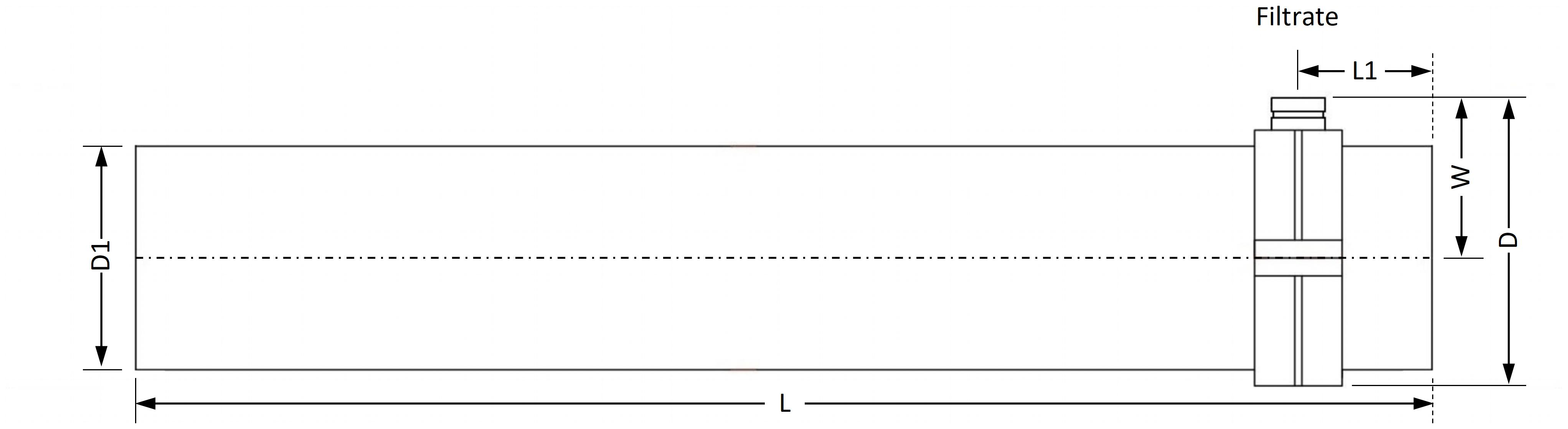

Module Dimensions

Model	Overall length L (mm/inch)	Length concentrate to filtrate connector L1 (mm/inch)	End cap diameter D (mm/inch)	Diameter without end caps D1 (mm/inch)	Distance feed to module center axis W (mm/inch)
TF7B0.9ZW-60V	1485/58.55	133/5.24	305/12.01	250/10	164/6.46

Specifications

Model	TF7B0.9ZW-60V
Effective membrane area (m²/ ft²)	60/645.9
Fiber ID/OD	0.9/4 mm (0.04/0.16 inch)
Membrane material	Modified PES (polyether sulfone), 7 bores
Flow direction	Inside-out
Pore size	0.02 μm
Housing material	UPVC
Potting material	Epoxy resin
Filtrate connection	Victaulic
Weight (kg/lbs.)	30/66

Operating and Cleaning Limits

Specifications	Parameters
Temp. range	1-40℃ (34-104°F)
Max. feed pressure	5 bar (72.5 psi)
Max. trans-membrane pressure	2.5 bar (36 psi)
Max. backwash pressure	3 bar (43.5 psi)
Backwash/forward flush maximum	250 l/m2h (150 gfd)
pH-continuous operation @ 25℃	2-11
pH-CIP @ 25℃	1-13
Hypochlorite (NaClO) for cleaning	50 to 200 ppm
Hydrogen peroxide for cleaning	100 to 200 ppm

We offer various UF membrane module equivalents. If you and your customer accept Suez GE ZeeWeed 700B ZW700B-10060/UF8/7B/V/0.9/60 without end-caps equivalent ultrafiltration membrane module, please send us an inquiry now.
