Products >> Hollow Fiber MBR Module >> MBR Cassette

ZW500D 16M Equivalent LEAPmbr Cassette

Product No.：TFZWS40Q16DLP
Online Inquiry

Equivalent, equivalence, replacement, alternative, alternate, analog, retrofit, analogue, derivative, substitution: Veolia Suez ZeeWeed 500D 16M LEAPmbr Cassette, ZW500D16M LEAPmbr Cassette

General Information

TFZWS40Q16DLP Cassette is manufactured as an equivalent, replacement, alternative, retrofit, analogue and derivative to replace Veolia Suez ZeeWeed 500D 16M Equivalent LEAPmbr Cassette.

TaFlux ZW Pulse series MBR cassettes consist of TaFlux ZW Select series hollow fiber MBR membrane modules, which are designed and manufactured mainly for wastewater and sewage treatment plants. The new generation TaFlux ZW Pulse MBR cassette for MBR applications are upgrade-designed and improved, while continuing to leverage the aeration and header design.

TFZWS40Q16DLP cassettes use improved state-of-art pulse aerators to save over 40% energy in aeration, meanwhile keep MBR modules from fouling, providing economical, comprehensive wastewater and sewage solutions to industrial and municipal applications around the globe.

Cassette Characteristics

High quality raw material
High resistance to fouling
Compact design with high membrane packing density

Advantages

High-quality filtrate
Small footprint to reduce CAPEX
Pulsed aeration to reduce OPEX
Economical equivalent cassette for direct replacement of Veolia Suez ZeeWeed 500D 16M LEAPmbr Cassette

Applications

Industrial wastewater
Municipal sewage
Domestic sewage
Submerged filtration
Pretreatment of industrial water

Figure

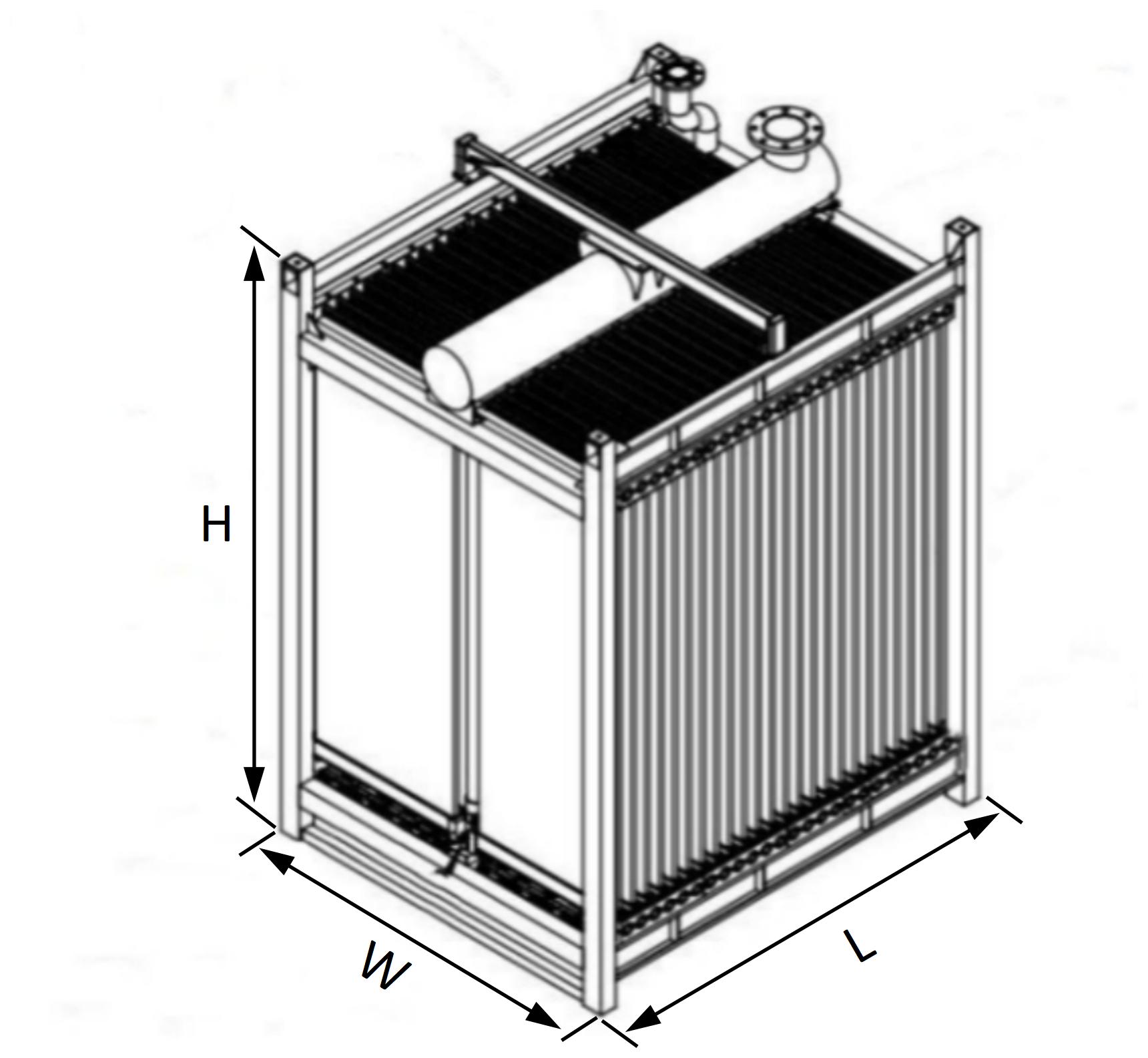

Veolia Suez ZeeWeed 500D 16M Cassette Equivalent LEAPmbr Dimensions

Dimensions

Module	Type	L (mm/inch)	W (mm/inch)	H (mm/inch)
TFZWS40Q	16D	690/27.17	1,750/68.9	2,830/111.42

Specifications

Type	16D
Filtrate Connection	2 x 4” FNPT half couplings
Air Connection	1 x 3” FNPT half coupling
Max. Shipping Weight (kg/lb)	741 (1,634)
Max. Weight (kg/lb)	1,455 (3,208)

Operating and Cleaning Limits

Flow Type	Negative Suction Pressure
Backwash Type	Air Water Backwash
Max TMP	-0.055 MPa/-8 psi
Operating Temperature	5 - 45℃/41 - 113°F
Recommended pH Range	1 - 12 (≤ 40℃)
Max. Active Chlorine (ppm)	1,000
Sodium Hypochlorite Cleaning	Typical 500-1,500 ppm, at ≤ 40℃ Max. 5,000 ppm 2,880,000 ppm hours cumulative
Hydrochloric Acid Cleaning	Typical 2,000 ppm, at ≤ 40℃ Max. 3% 1,440,000 ppm hours cumulative
Citric Acid Cleaning	Typical 0.5%, at ≤ 40℃ Max. 15,000 ppm 1,440,000 ppm hours cumulative
