TFMAXP105 is manufactured as the direct equivalent, replacement, alternative, retrofit and analogue to Hydranautics HYDRAcap MAX 80 (MAX80) UF membrane module.

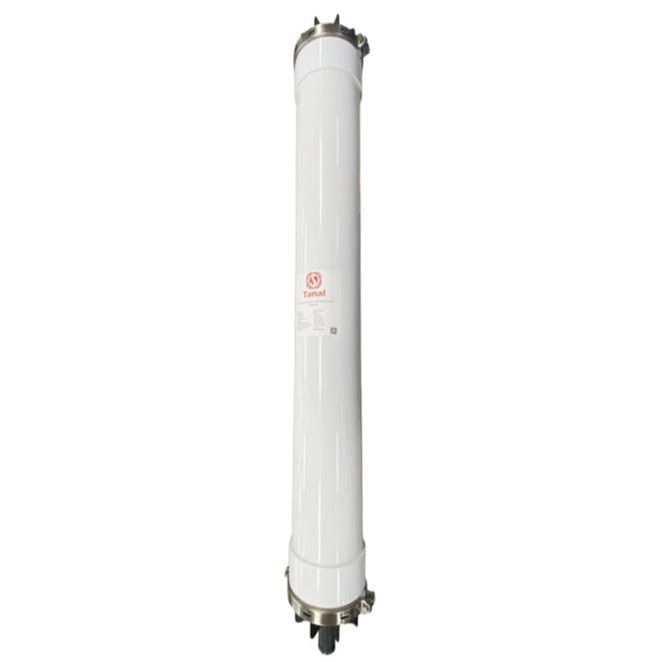

TaFlux TaCap Max Pro series TFMAXP105 ultrafiltration (UF) membrane modules are pressurized modules, which are designed and manufactured for the filtration of surface water, potable water, seawater and industrial wastewater. These UF modules are made of new generation TIPS (thermally induced phase separation) PVDF hollow fiber membrane with high tensile strength and fouling resistance.
TFMAXP105 UF modules are applied in flexible UF systems, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes such as NF and RO.

Features

• Outside-to-inside flow direction
• New generation PVDF hollow fiber
• Uniform pore size of 0.08 μm
• Typical filtrate turbidity ≤ 0.1 NTU
• Bacteria removal ≥ 4 log


Advantages

• Extra high tensile strength for longer service life
• High tolerance for feed water
• High-quality filtrate
• Less energy needed for high flux
• Longer service life by high fouling resistance
• Economical equivalent module for direct replacement of Hydranautics HYDRAcap MAX 80

Applications

• Surface water
• Potable water
• Beverage clarification
• Industrial process water
• Reclaimed water reuse
• Industrial wasterwater
• Pre-treatment of seawater desalination

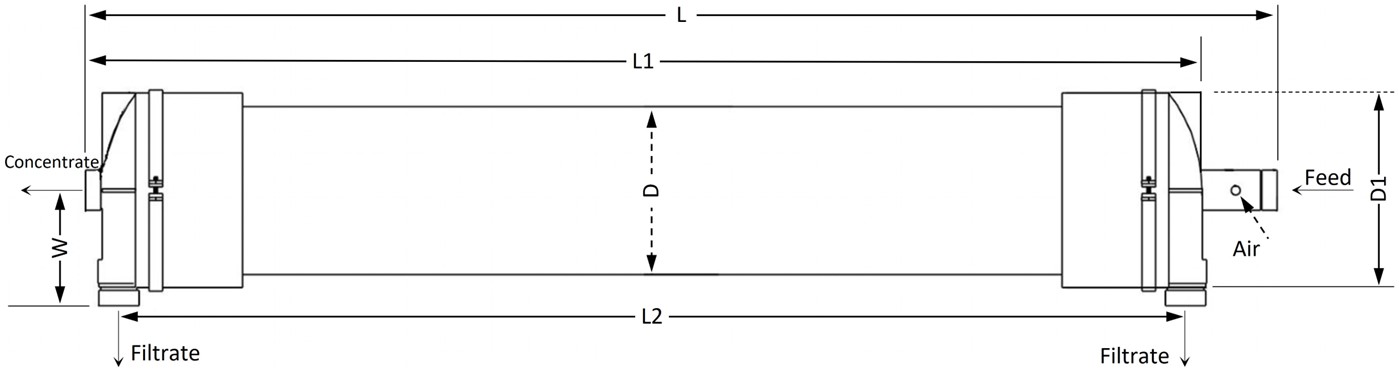

Module Dimensions

Model	L (mm/in)	L1 (mm/in)	L2 (mm/in)	D (mm/in)	D1 (mm/in)	W (mm/in)	Connection port	Air inlet
TFMAXP105	2340.6/92.15	2232.7/87.9	2110.9/83.11	250/9.84	290/11.42	172/6.8	DN50 (2” Victaulic)	3/8” FNPT

Specifications

Specifications	Parameters
Model	TFMAXP105
Effective membrane area (m²/ft²)	105/1130
Filtrate flow rate m3/h (gpm)	3.6 - 12.6 (15.7 - 55.5)
Dry weight (KG/lbs)	62/135
Wet weight filled with water (KG/lbs)	118/260
Membrane material	PVDF (Polyvinylidene Fluoride), TIPS
Fiber ID/OD	0.6/1.2 mm (0.024/0.047 inch)
Flow direction	Outside-in
Pore size	0.08 μm
Housing material	UPVC
Potting material	Epoxy resin

Operating and Cleaning Limits

Type of operation	Dead-end flow or cross flow
Typical flux (25°C)	34 - 120 L/m2·h (20 - 71 gfd)
Temperature	1 - 40°C (34 - 104°F)
Maximum feed pressure (20°C)	5 bar (73 psi)
Maximum feed pressure (40°C)	3 bar (44 psi)
Maximum trans-membrane pressure	2 bar (30 psi)
Maximum air scour feed pressure	2.5 bar (36 psi)
Air scour flow	12.3 - 15.4 Nm3/h (7.3 - 9.1 acfm)
Air scour duration	2 - 4 minutes
Air scour frequency	Once every 20 - 60 minutes
pH-Continuous operation @25°C	2 - 11
pH-Cleaning @25°C	1 - 13
Maintenance cleaning frequency	1 - 3 times per day
Maintenance cleaning duration	20 - 30 minutes
Disinfection chemicals	NaClO, ClO2 or NH2Cl
Cleaning chemicals	NaOH, HCl, H2SO4 or citric acid
Instantaneous chlorine tolerance	5,000 ppm
Maximum chlorine exposure	750,000 ppm-hrs
Maximum feed TSS	100 ppm
Maximum feed turbidity	300 NTU
Maximum feed particle size	300 µm
Filtrate SDI15	≤ 2.5
Filtrate turbidity	≤ 0.1 NTU

We offer various UF membrane module equivalents. If you and your customer accept Hydranautics HYDRAcap Max 80 equivalent UF membrane module, please send us an inquiry now.
