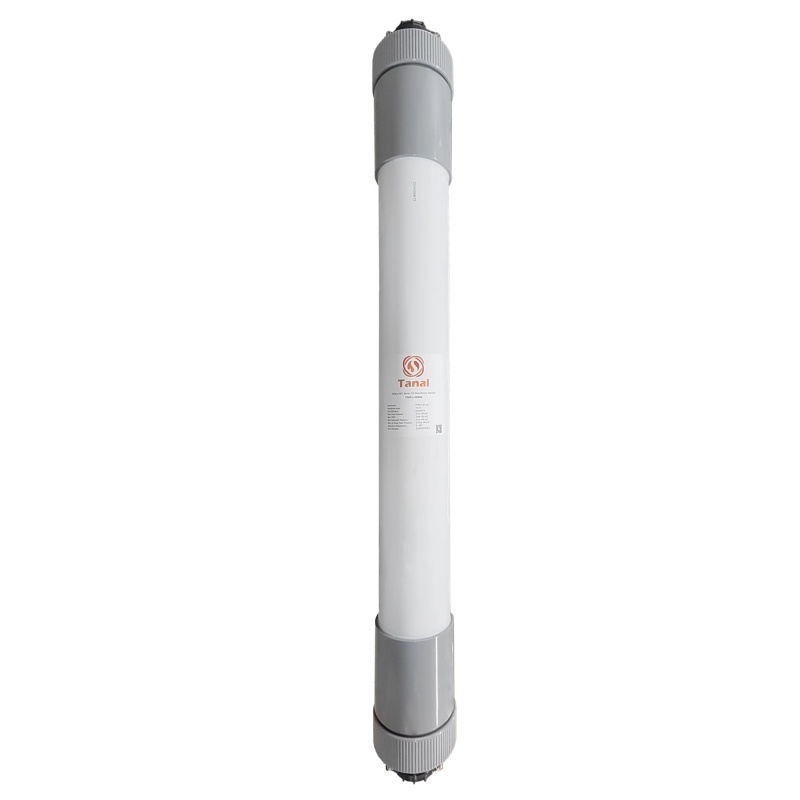

HFUG-2020AN Equivalent

Product No.：TFHFUP-2020AG
Online Inquiry

Equivalent, replacement, alternative, analog, retrofit, analogue: Toray HFUG-2020AN, HFUG2020AN

General Information

TFHFUP-2020AG is manufactured as the direct equivalent, replacement, alternative, analog, retrofit and analogue to replace Toray HFUG-2020AN (HFUG2020AN) UF membrane module.
TaFlux HFU Pro series TFHFUP-2020AG ultrafiltration (UF) membrane module is a pressurized module, which is designed and manufactured for the filtration of surface water, potable water, seawater and industrial wastewater. These UF modules are made of new generation TIPS (Thermally Induced Phase Separation) PVDF hollow fiber membrane with high tensile strength and fouling resistance.
TFHFUP-2020AG UF module is applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.

Features

Outside-to-inside flow direction
New generation TIPS PVDF hollow fiber
Nominal pore size of 0.01 μm
Typical filtrate quality SDI ≤ 2.5, turbidity ≤ 0.1 NTU

Advantages

High tolerance for feed water and high-quality filtrate
Smaller footprint design with CAPEX reduction
Less energy needed by high flux
Longer service life by extra high mechanical strength
Economical equivalent module for direct replacement of Toray HFUG-2020AN

Applications

Surface water

Well water

Potable water

Industrial process water

Reclaimed water reuse

Pre-treatment of seawater desalination

Module Dimensions

Model

(mm/in)

Feed, Filtrate

Concentrate

TFHFUP-2020AG

2,160/

85.04

1,724/

67.87

1,314/

51.73

218/

8.58

216/

8.5

248/

9.76

175/

6.89

Φ89.1/

DN80

Φ76.3/

DN65

Specifications

Specifications	Parameters
Model	TFHFUP-2020AG
Effective membrane area	90 m² (969 ft²)
Fiber ID/OD	0.6/1.1 mm (0.02/0.04 inch)
Membrane material	PVDF (Polyvinylidene Fluoride), TIPS
Flow direction	Outside-in
Pore size	0.01 μm
Housing material	PVC
End caps material	PVC
Potting material	Epoxy resin
Caps & nuts with housing	Integrated
O-rings material	EPDM
Dry weight	51 KG (112 lbs)
Wet weight filled with water	105 KG (232 lbs)

Operating and Cleaning Limits

Maximum feed flux	15 m³/h (66 gpm)
Maximum backwash flux	16.8 m³/h (74 gpm)
Type of operation	Dead-end flow
Design flux (25°C)	36-120 L/m²·h (21.6-71 gfd)
Temperature	0-40°C (32-104°F)
Maximum feed pressure (25°C)	3 bar (44 psi)
Maximum trans-membrane pressure	2 bar (29 psi)
Maximum backwash pressure	3 bar (44 psi)
Maximum air scour feed pressure	2.5 bar (36 psi)
Maximum air scour flow	9 Nm³/hr (5.3 scfm)
pH continuous operation @ 25°C	2-11
pH cleaning @ 25°C	1-12
Maximum NaClO	3,000 mg/L
Maximum NaClO exposure (lifetime contact time) as Cl₂	1,000,000 mg/L hours
Maximum feed TSS	100 ppm
Maximum feed turbidity	300 NTU
Maximum feed particle size	300 µm
Filtrate SDI₁₅	≤ 2.5
Filtrate turbidity	≤ 0.1 NTU

We offer various UF membrane module equivalents. If you and your customer accept Toray HFUG-2020AN equivalent UF membrane module, please send us an inquiry now.
