  • ZW1500 (ZW 1500) Equivalent
ZW1500 (ZW 1500) Equivalent

ZW1500 (ZW 1500) Equivalent

Equivalent, replacement, alternative, analog, retrofit, analogue: Suez GE ZW1500, ZW 1500, ZeeWeed 1500, ZeeWeed1500

General Information

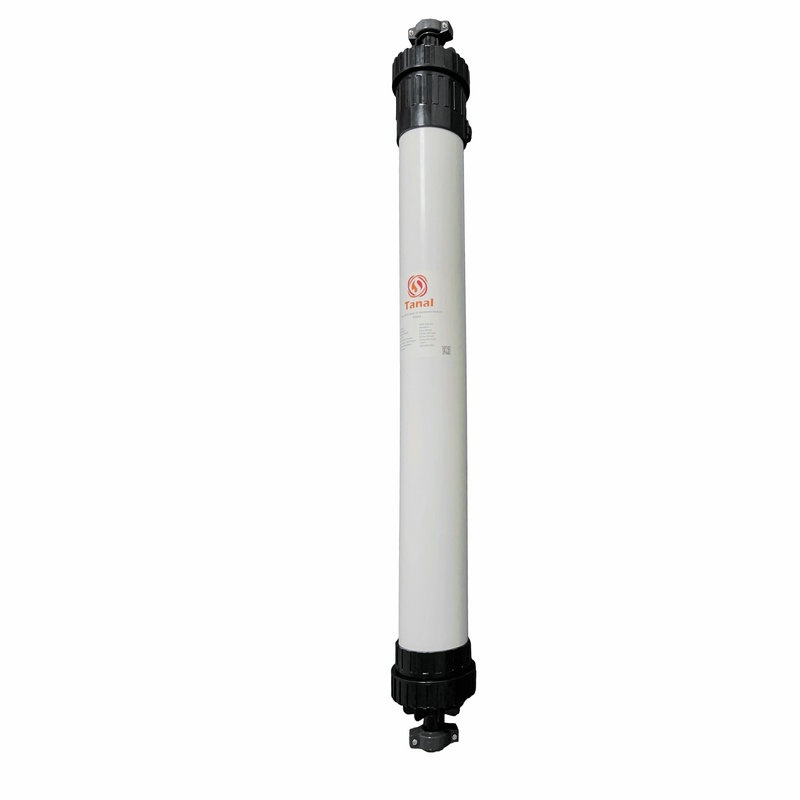

TFZW55 is manufactured as the direct equivalent, replacement, alternative, retrofit and analogue to replace Suez GE ZeeWeed 1500 (ZW1500) UF membrane module.
TFZW55 ultrafiltration (UF) membrane module is a pressurized module, which is designed and manufactured for the filtration of surface water, potable water, seawater and industrial wastewater reuse. These UF modules are made of new generation PVDF hollow fiber membrane with high fouling resistance and hydrophilicity.
TFZW55 UF modules are applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.

Features

  • Outside-to-inside flow direction
  • New generation PVDF hollow fiber
  • Nominal pore size of 0.02 μm
  • Typical filtrate quality SDI ≤ 2.5, turbidity ≤ 0.1 NTU

Advantages

  • High tolerance for feed water
  • High-quality filtrate
  • Less energy needed with high flux
  • Longer service life by high fouling resistance and mechanical strength
  • Economical module for direct replacement to Suez GE ZeeWeed 1500 (ZW1500)

Applications

  • Surface water
  • Potable water
  • Industrial wastewater
  • Reclaimed water reuse
  • Pre-treatment of sea water desalination

Module Dimensions

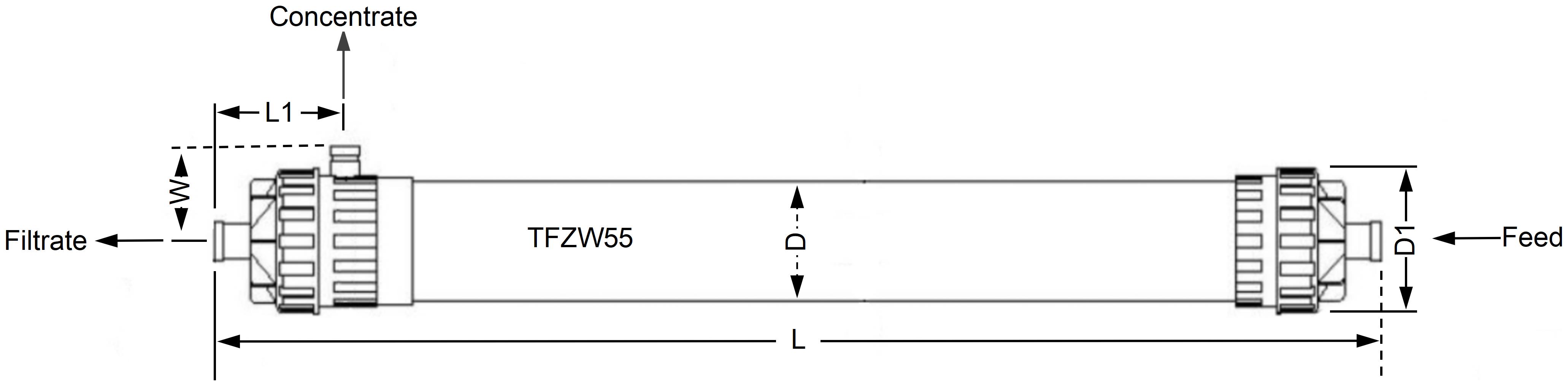

ZW1500 (ZW 1500) Equivalent Module Dimensions

Model

L
(mm/inch)

L1
(mm/inch)

D
(mm/inch)

D1
(mm/inch)

Feed & filtrate port

Concentrate port

Joint type

TFZW55*

1,919/75.55

216/8.5

219/8.62

180/7.09

DN50

DN40

UPVC unions

* Formerly TFZW7055C.
Specifications

Effective membrane area

55.7 m² (600 ft²)

Membrane material

PVDF (Polyvinylidene Fluoride)

Pore size

0.02 μm

Membrane surface properties

Hydrophilic and non-ionic

Fiber ID/OD

0.65/1.2 mm (0.03/0.05 inch)

Flow direction

Outside-in

Housing material

UPVC

Potting material

Epoxy resin

Wet weight filled with water

32 KG (70.5 lbs)

Shipping weight

37 KG (80 lbs)

Operating and Cleaning Limits

Type of operation

Dead-end flow or cross flow

Design flux (25°C)

40 - 120 L/m2·h (24 - 71 gfd)

Temperature

1 - 40°C (34 - 104°F)

Maximum feed pressure (20°C)

4 bar (58 psi)

Maximum trans-membrane pressure

2.8 bar (40.6 psi)

Backwash flux (25°C)

32 - 120 L/m2·h (19.2-71 gfd)

Maximum backwash pressure

2.5 bar (36 psi)

Maximum air scour feed pressure

1.5 bar (21.8 psi)

Air scour flow

4-8.5 Nm3/hr (2.4 - 5 scfm)

pH-Continuous operation @25°C

2 - 11

pH-Cleaning @25°C

2 - 12

Maximum NaClO

1,000 mg/L

Maximum feed TSS

100 ppm

Maximum feed turbidity

300 NTU

Maximum feed particle size

300 µm

Filtrate SDI15

≤ 2.5

Filtrate turbidity

≤ 0.1 NTU
